Cannondale Topstone Neo Carbon 2 Speed Electric Bike - 2021

Item #182681
Product Image of color Black Pearl/Graphite loading
Black Pearl/Graphite

This product is not available.

Shop similar products

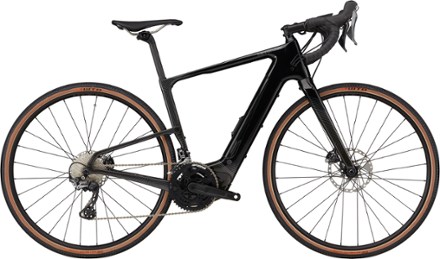

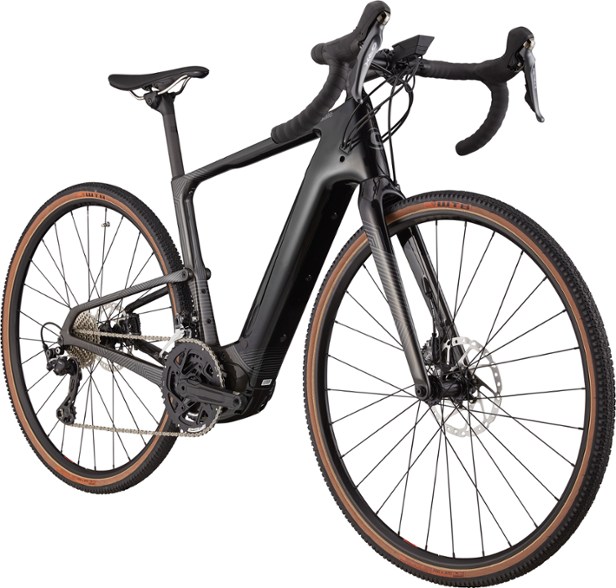

Off-road capable and on-road comfortable, the Cannondale Topstone Neo Carbon 2 Speed e-bike is a gravel bike like no other, withpedal assist up to 28 mph and a range of up to 78 mi.

  • Features

    • Equipped with a 250W Bosch Performance Line Speed motor, this is a go-anywhere, do-anything adventure machine that knows no boundaries
    • Ready for adventure, a removable Bosch PowerTube 500Wh downtube battery delivers a range of up to 78 mi. (125 km)
    • Centrally mounted Bosch Kiox hi-res color display provides easy viewing of all your data and features a separate control unit, USB charging port and service reminders
    • Revolutionary Kingpin rear suspension delivers 30mm of plush travel and compliance that's a dream to ride
    • Big clearance means big tires—with 700c x 37 mm tires stock, you get more grip and more go
    • Refined geometry and a confident rider position deliver a machine that's stable, composed and laugh-out-loud enjoyable to ride
    • Tons of gear and storage mounts let you add everything you need for adventure
    • Internally routed dropper post compatible (dropper not included)
    • Integrated wheel sensor helps track your activity—like speed, distance and calories burned—registers your bike and reminds you of needed service via the free Cannondale app
    • Pedals not included
    • Specs and images are subject to change

    Imported.

    This e-bike comes with Coast to Coast Support, which includes:
    • 1 year of free adjustments (see more below)
    • In-store bike assembly
    • Pickup in store or curbside
    • Bike experts available at 170+ bike shops
    REI Co-op Members get more:
    • An additional year of free adjustments (2 total years; see below)
    • Free flat tire repairs (labor only; parts not included)
    • 20% off shop services
    More about our free adjustments:
    New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

    View the Cannondale Topstone Product LineView all Cannondale Gravel Bikes

  • Technical Specs

    Best Use

    Road Cycling

    Gravel Cycling

    E-Bike Classification

    Class 3: pedal assist up to 28 mph

    Motor

    Bosch Performance Line Speed 250W

    Motor Type

    Mid-Drive

    Motor Torque (Nm)

    85 Newton meters

    Battery Type

    Lithium Ion

    Battery Capacity (Wh)

    500 watt hours

    Battery Removable

    Yes

    Charge Time (hrs)

    3.5 hours

    Pedal Assist Range

    75 miles

    Frame

    BallisTec Carbon Frame, removable downtube battery, Kingpin suspension system, 12 x 148 thru axle, dropper post compatible

    Step-Through

    No

    Bike Suspension

    Rear Suspension

    Fork

    1-1/8 to 1-1/4 in. tapered steerer, 55 mm OutFront offset, flat mount disc, internal routing, 12 x 110 mm thru axle

    Crankset

    FSA Bosch E-Bike, 48/32T

    Shifters

    Shimano GRX 800, 2 x 11

    Front Derailleur

    Shimano GRX, braze-on

    Rear Derailleur

    Shimano GRX 810, Shadow RD+

    Rear Cogs

    Shimano 105, 11-34T, 11-speed

    Number of Gears

    22 gear(s)

    Brake Type

    Hydraulic Disc Brake

    Brakes

    Shimano GRX hydraulic disc, 180/160 mm RT64 rotors

    Brake Levers

    Shimano GRX hydraulic disc

    Rims

    WTB KOM Light i23 TCS, 28h, tubeless ready

    Front Hub

    Formula cartridge bearing, Centerlock, 12 x 110 mm thru axle

    Rear Hub

    Formula cartridge bearing, Centerlock, 12 x 148 mm thru axle

    Wheel Size

    700c

    Tires

    WTB Riddler TCS Light, 700c x 37 mm, tubeless ready

    Tire Width

    37 millimeters

    Handlebar Shape

    Drop Bar

    Handlebar

    Cannondale 3, butted 6061 alloy, 16 deg .flare drop

    Stem

    Cannondale, 6061 alloy, 31.8 mm, 7 deg.

    Seat Post

    Promax SP-9032, Carbon, 27.2 mm

    Saddle

    Fizik New Aliante R3, 150 mm width, K:ium rails

    Pedals

    Not included

    Headset

    Integrated, 1-1/2 to 1-1/8 in. tapered with reducer, 25 mm alloy top cap

    Chain

    Shimano HG701, 11-speed

    Weight

    36 lbs. 14.4 oz.

    Bike Weight

    Bike weight is based on median size, as sold, or the average of two median sizes.

    Gender

    Unisex

  • Size Chart

    SMLXL
    Reach37.738.739.440.2
    Stack54.957.561.064.0
    Effective Top Tube53.455.256.958.6
    Seat Tube Center-Top41.044.050.055.0
    Standover Height74.377.382.486.8
    Head Tube Length12.715.819.522.9
    Head Tube Angle (degrees)71717171
    Seat Tube Angle (degrees)74747474
    Bottom Bracket Height28.929.229.229.4
    Wheelbase101.8103.8105.7107.6
    Chainstay42.042.042.042.0
    Fork Offset5.55.55.55.5

    Sizing Notes

    Measurements are stated in centimeters unless otherwise indicated.

    How we measure bikes

    1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
    2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
    3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
    4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
    5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
    6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
    7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
    8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
    9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
    10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
    11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
    12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
