Shimano Deore M5100 1 x 11-Speed Crankset
With low weight and high rigidity, the Shimano Deore M5100 1 x 11-speed crankset delivers efficient pedaling force built for a mountain with reliable, precise 1x shifting.
This purchase pays for membership!
$7
10% Reward
on this and every eligible full-price item*
+
$30
Bonus Card
valid for 60 days after joining*
=
$37
Value
Keep shopping
- Integrated crankarm and bottom bracket spindle provides increased rigidity and a wider bearing position, while keeping weight down
- 178.5 mm Q-factor compatible with wide 148 mm O.L.D. frames
- 52 mm chainline for 1 x 10- or 11-speed drivetrains
Imported.
View the Shimano Deore Product LineView all Shimano Bike Cranksets| Best Use | Mountain Biking |
|---|---|
| Material(s) | Aluminum/steel |
| Weight | Unavailable |
| Crankarm Length | 170 MM: 170 millimeters 175 MM: 175 millimeters |
| Q Factor | 178.5 |
| Bottom Bracket Compatibility | Outboard 68/73mm |
| Bolt Circle Diameter | 96 millimeters |
| Chainring Sizes | 30T |
| Included Components | Chainring |
| Speeds | 11-speed |
| Chainline | 52 |
| Chainring Mount | 4-bolt Asymmetric |
| Number of Chainrings | 1 Chainring |
| Spindle Diameter | 24 millimeters |
| Crankarm Material | Aluminum |
Review this Product
Adding a review will require a valid email for verification
Customer Images
Huge Upgrade

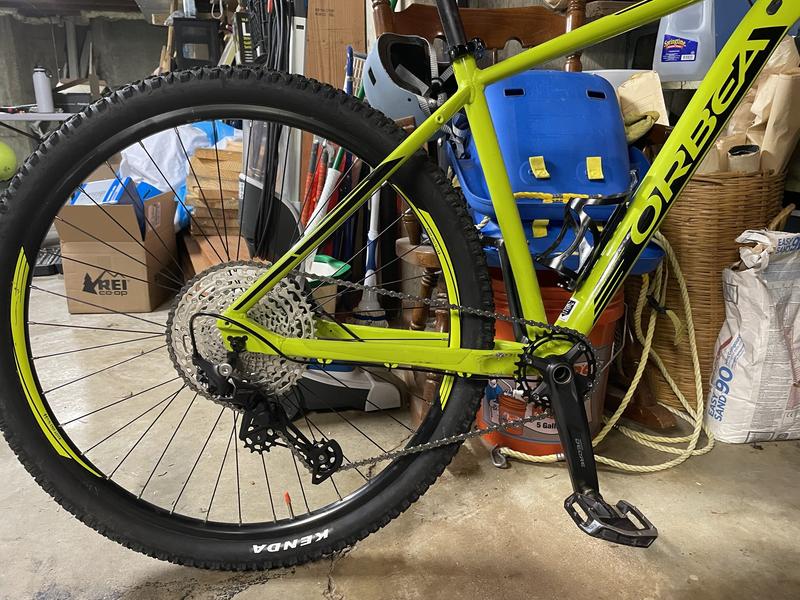

This review is about the Shimano M5100 group set as a whole. I made my first foray into mountain biking a few months ago with the purchase of a gently used Orbea MX50 mountain bike. It came with a Shimano Atlus 3x8 group set (3 gears/cogs in front, 8 gears/cogs in back for those as new to this as I recently was). This group set has been a HUGE upgrade. I switched everything to 1x11 which required buying a new crank, sprocket, chain, derailleur, annd shifter. I have plenty of gear range and it is SO MUCH more functional. This group set has really changed my bike for the better! Keep in mind you will probably need to buy some special tools, grease, etc. I did the upgrade myself and it’s pretty involved but if you’re mechanical, it’s definitely a job that can be done in a basement or garage. No regrets at all!
nice 11sp set, but heavier 845g (vs 675g for XT)
Looks like nice replacement MTB cranks but considerably heavier than my older XT, not a huge surprise. These are 845g total (vs 675g for the exact m8000 spec crankset).
