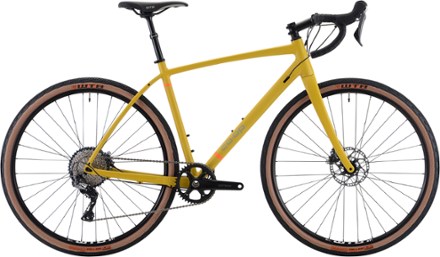

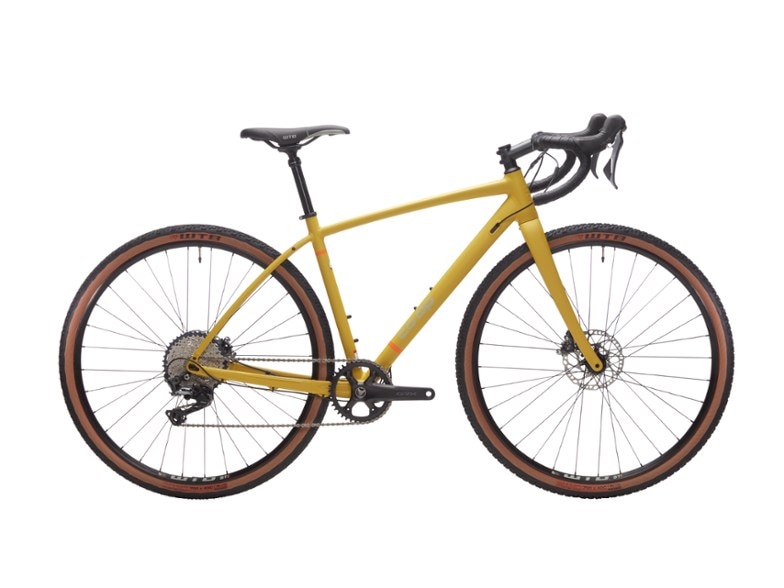

Co-op Cycles ADV 2.3 Bike
This product is not available. Good news: we have a newer version.
Fly down the road less traveled. The made-for-speed Co-op Cycles ADV 2.3 bike uses top Shimano GRX components made specifically for gravel riding, plus a dropper post that'll give you extra control.
Shop newer versionKey Details
- Aluminum frame and carbon fork balance durability and light weight; durability so you can carry a kit and lightness so you can take uphills with ease
- Shimano GRX 1 x 11 drivetrain isn't a reworked set of road components—its gravel-specific ergonomics provide stability and reliability to get after the harder stuff
- Shimano GRX Shadow Plus rear derailleur reduces chain slap and noise and prevents chain drop when terrain gets tough
- Shimano 11–42 SLX cassette provides smooth and stable shifting that's designed to hold up to aggressive trail riding
- Shimano GRX hydraulic disc brakes deliver control for rough surfaces
- 12° flared handlebars gives you a wider and more upright hold
- WTB Nano 700c x 40mm tires are built for speed with a clean centerline for efficiency on hardpack terrain and staggered outer knobs for chunky climbs and corners
- Full WTB TCS (Tubeless Compatible System) tires and pretaped rims make converting to tubeless a breeze
- X Fusion Manic Gravel dropper post borrows from MTB to give gravel riders what they need to take on steep downhills: control
- Dropper post lever is integrated into the left brake so you can drop the seat without taking your hands off the bars
- All-gender fit simplifies the buying process and fits riders 5'0"–6'3"
- ADVs are our adventure bikes: This one is made for where the road meets adventure, with a focus on premium components for off-road riding and fast-and-light adventures
- Add a frame bag or rear rack to extend your adventure overnight (bag and rack not included)
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Gravel Cycling Bikepacking |
|---|---|
| Frame | Double-butted 6061 aluminum |
| Fork | Carbon with 1-1/8 to 1-1/2 tapered steerer tube |
| Bike Suspension | No Suspension |
| Crankset | Shimano GRX 600, 40t |
| Bottom Bracket | Shimano GRX |
| Shifters | Shimano GRX ST-810 with integrated dropper lever |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano GRX RD-RX812, Shadow Plus Design |
| Rear Cogs | Shimano SLX, 11-42t, 11-speed |
| Number of Gears | 11 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano GRX 800 hydraulic disc with Shimano RT64 Center Lock rotors |
| Brake Levers | Shimano GRX BR-810 |
| Rims | WTB ST i23, TCS, including WTB TCS rim tape |
| Front Hub | Shimano Tiagra for 12mm thru axle |
| Rear Hub | Shimano Tiagra for 12mm thru axle |
| Wheel Size | 700c |
| Tires | WTB Nano TCS 700c x 40mm with tan sidewalls |
| Tire Width | 40 millimeters |
| Handlebar Shape | Drop Bar |
| Handlebar | Co-op Cycles 12-degree flared |
| Stem | Co-op Cycles 6061 aluminum |
| Seat Post | X-Fusion Manic Gravel Dropper Post |
| Saddle | WTB Silverado Comp |
| Pedals | Not included |
| Headset | Integrated 1-1/8 x 1-1/2 in. tapered |
| Chain | Shimano |
| Weight | 23.2 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| Sustainability | From a Climate Label Certified brand |
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Height Range | 5' - 5' 3" | 5' 3" - 5' 6" | 5' 6" - 5' 9" | 5' 9" - 6' | 6' - 6' 3" |
| Reach | 373 | 380 | 386 | 394 | 404 |
| Stack | 521 | 532 | 554 | 571 | 592 |
| Effective Top Tube | 513 | 528 | 545 | 563 | 585 |
| Seat Tube Center-Top | 385 | 435 | 470 | 510 | 545 |
| Standover Height | 698.5 | 727 | 756 | 785 | 811 |
| Head Tube Angle (degrees) | 70 | 70.5 | 71.5 | 71.5 | 72 |
| Seat Tube Angle (degrees) | 75 | 74.5 | 74 | 73.5 | 73 |
| Wheelbase | 1022 | 1029 | 1029 | 1040 | 1045 |
| Chainstay | 432 | 432 | 432 | 432 | 432 |
| Fork Offset | 55 | 55 | 50 | 50 | 50 |
Sizing Notes
All measurements are stated in millimeters or degrees unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
Better gear is built together
From feedback to field testing, all of our gear is dialed-in by REI Co-op members. Their adventures informed every stitch and detail—making for better, longer-lasting gear.


Write a Review
Adding a review will require a valid email for verification
Customer Images
Most Helpful Favorable Review
Most Helpful Critical Review

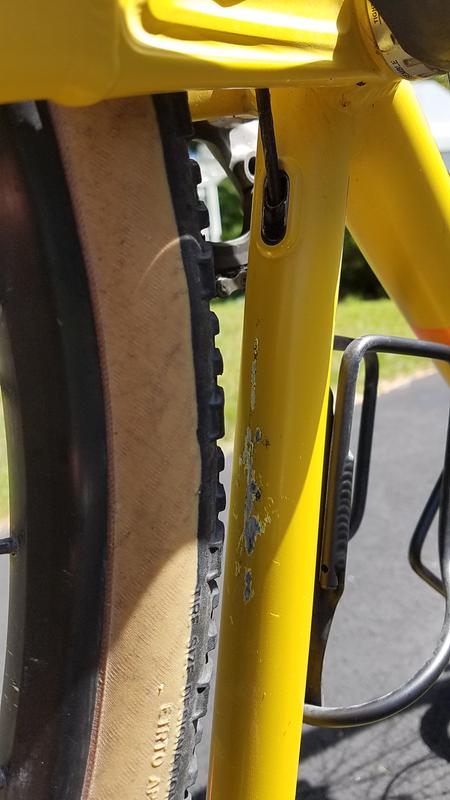

Perfect bike with TERRIBLE PAINT

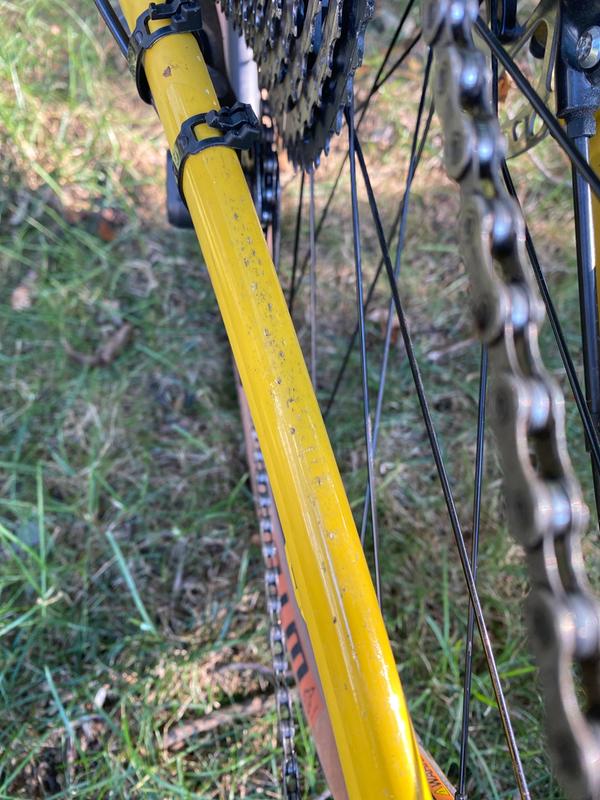

So let me start off by saying I have been riding bikes for a while and have owned a lot of bikes. When I got this bike I was extremely pleased with the feel and quality of the build and components. This bike should be a perfect 5 stars. Sadly there is a majore issue with the paint quality. In the course of ridding this bike 2 months I have seen more paint chip or flake off then my mountain bike that I have had over a year or any other bike I have owned. While the matt yellow looks awesome there is a quality control issue and even the housing cables wear the paint off the bike with just a couple of rides. My partner bought a Topstone at the same time and there is not a single issue with the paint. I have had to buy LOTS of clear covers to keep the bike from touching any of its own cables. On top of that the bike chips with any gravel use....... and its a gravel bike. I tried reaching out via REI chat but got nowhere with the issue. My hope is that REI addresses the paint issue head on.

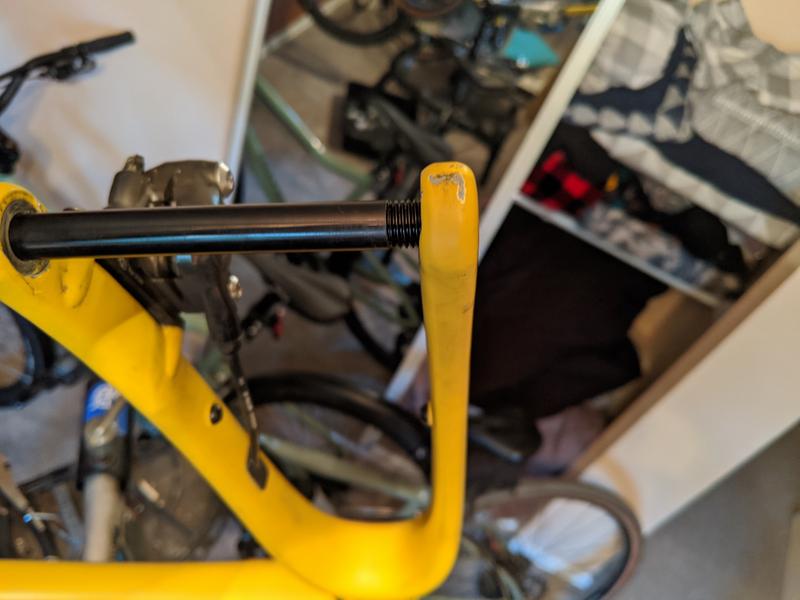

Great Bike, Terrible Paint Job
The bike works fine so far, but the paint gets rubbed off the frame very easily. After two months there’s already lots of paint scraped off all over the frame.
Steerer tube too short - spec issue

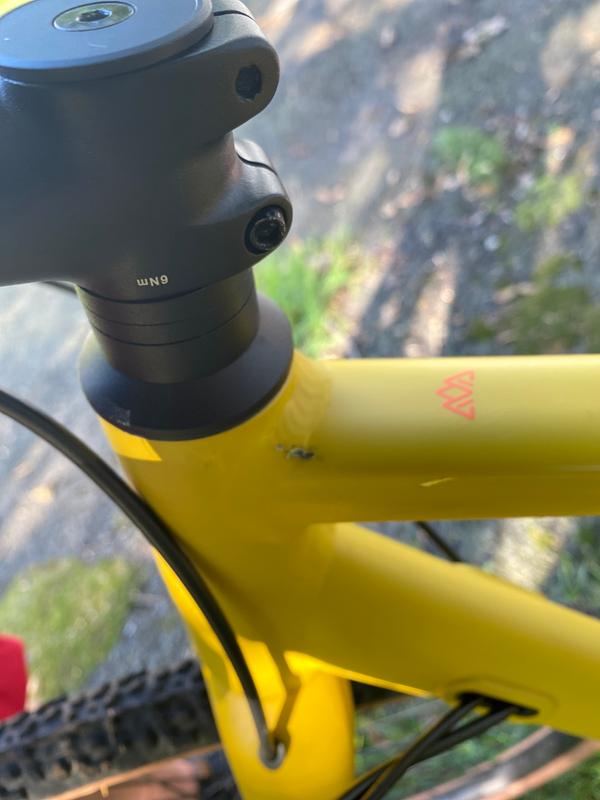

There are a couple issues that preclude me from recommending this bike. 1) the steerer tube on the fork comes precut way to short, I've been in the industry for 20 years and I've never seen a bike speced with one so short. The fork comes with a metal threaded insert (not a starnut) that would at least prevent a technician at REI from going any shorter. This is advertised as an adventure bike this is very much so a roadie saddle to bar drop. I've tried the shortest negative angle stems you can buy to try to get the fit better. 2) the paint is low quality, if you live in the PNW, you will probably notice this even more than I do in SoCal. Anything rubbing the frame such as a saddle bag or your shoes will take the paint off right away. Not part of the bike but a comment about REI, I received the bike with stripped bolts on the saddle clamp. I called the store and shared that the technician should not be using the ball end of an alen key on high torque bolts. They offered to replace this, but I had a trip to go on and fortunately could use pliers to remove the bolts and had spare compatible bolts (30 min job).

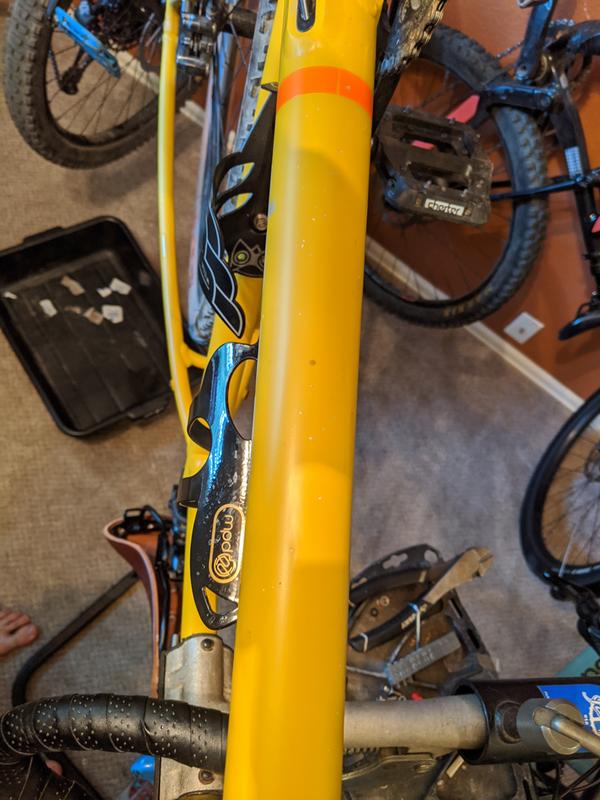

Great concept but extremely poor paint quality

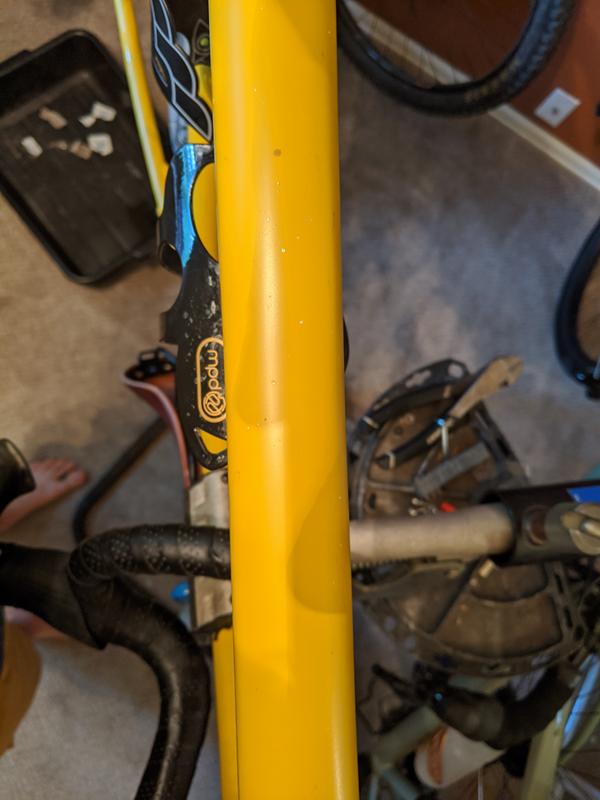

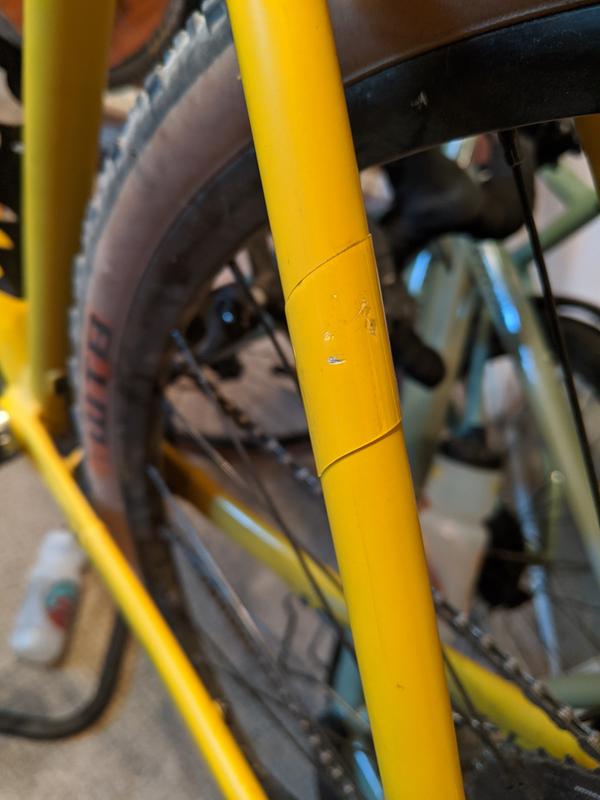

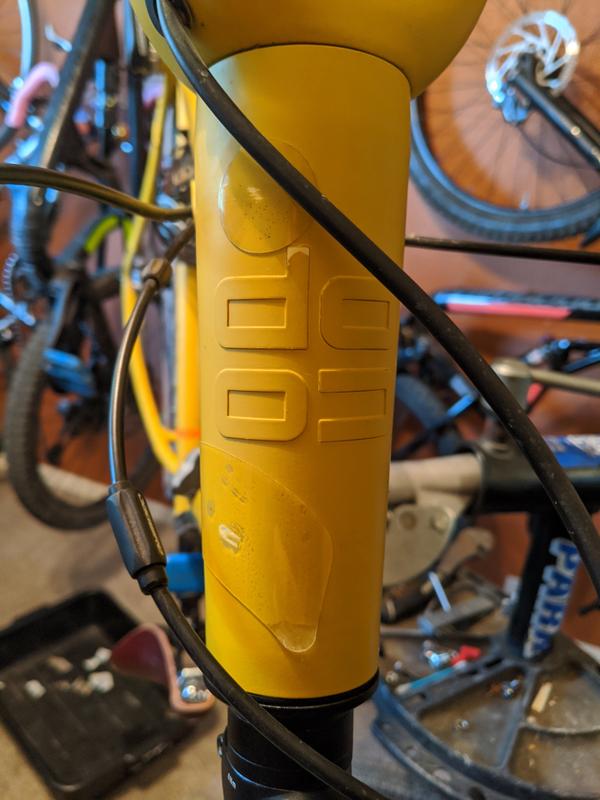

I liked the overall specs on this 2.3 bike. When I went to buy it in March 2022 it was out of stock. I found a used one locally that was in excellent condition that a gentleman had to sell for health reasons. The overall ride and performance of the bike has been excellent with the exception of the paint. While I had read earlier review about paint quality, I didn't expect to literally rub off. I've had to cover a large portion of the bike in clear tape to preserve what's left of the paint job. This bike should have never made it through REI quality control. I have a K2 road bike and K2 mountain bike that I bought at REI in 2005 and both of their paint jobs have been bullet proof. REI should consider giving owners of this bike replacement frames or a credit on another CO-OP bike purchase.
Works well on gravel - 50 miles driven on gravel
Just bought the bike after comparing options with other competitors. I was a bit hesitant due to 1x gearing but the bike seems to work well, in reality I need to develop as a rider to push the bike harder. Dropper post is fun to use once in a while. I have added gel cover to the saddle. trail shocks were absorbed really well, I went over pebbles, bumps, twigs and other vegetation several times without any issues.
Really took my rides up a notch
I have a Giant Seek 2 which I have been using for commuting as well as rides but it was pretty limited on what I could do with it. With some advise, and pressure, from friends I decided on a gravel bike. The components on this one really had me intrigued. I did change out the stem to put me a bit more upright but starting to really get used to her and it has been a ball.
This is the bike!
This bike looks, feels and works great. After waiting 71/2 months for another gravel bike I’d ordered I stumbled on this one on the REI site and can only consider it Devine intervention. The GRX 800 drivetrain is smooth and precise, and the disc breaks will leave skid marks though I don’t recommend it (my first disc breaks). The geometry feels right and the mat yellow finish (add the orange bottle cages) really pops. I’m even impressed with the WTB tires which are surprisingly smooth on pavement and handle well in gravel. I don’t do much trail riding so no comment there. I may add a 5mm spacer to the stem and exchange a carbon seat post for the drop post I don’t really need. I suspect a saddle and tire upgrade in the future but honestly, out of the box this bike is fantastic. The “go anywhere bike” I’ve wanted for a long time.
Great bike and value

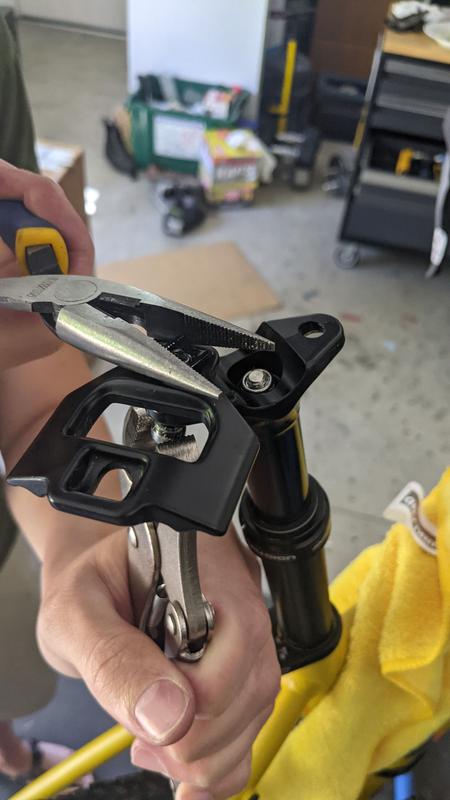

Excellent bike. I use it 90% on fire roads and it works great. The dropper did not work but REI was very cool and let me swap it out for a better dropper no charge. PNC 110mm drop is an excellent upgrade. Love this bike and have almost stopped using my mountain bike since I’ve owned this.
incredible ride
Put a few hundred miles on this bike since picking it up about a month ago. I have been super impressed with how smoothly it transitions from gravel to road. Really great handling, quick, and light. Would absolutely recommend. The upgraded GRX group-set makes a huge difference.
My all road bike, mostly off road.
I have chosen this nice all road/ gravel bike that has a Giant factory frame, full of nice features: Almost full GRX 800 group except the crank. Standard threaded bottom bracket that is easy to maintain. (no press fit creaks or headaches later on) Smooth rolling wheel set with enough spokes for adventure riding. Rear rack capable with rubber plugs installed, nice touch. Dropper seatpost help with confidence when descending. Very adequate WTB factory tires that matches the ability of the bike, especially when setup tubeless. Mostly importantly: available for purchase, don't have to wait for months or a year. I have taken this for a first ride up very a steep climb and descent on a fire road. We are talking about 15% grade or more that should challenge just about any rider. My previous bikes including MTB had started lifting the front tire or spin the rear resulting in me needed to stop. With this bike I was able to power up this hill with the factory tire tubeless at 35 psi. It was not easy but I made up the steep patches that had normally gave me problems. After cresting the hill I retracted the dropper seatpost with a push of the left lever and descent down the other side. The dropper does help with the stability. The hydraulic disc brakes worked nicely although not as strong as my mountain bike that has a bigger disc. The pads are not bedded in when new and should improve with use. On the road it does give up a bit of speed, probably due to the low pressure and off road tires. I think it should be quite capable for long riding on the road with proper tires. With the stock tires it is ready for offroad use, doesn't try to be "hybrid" nor pretend to be. I have used SRAM Rival, Red, 1x etc, I still think Shimano group is top notch and I usually prefer Shimano when given a choice. Some other reasons I purchased this REI bike @ REI is because my local branch's bike shop does good work with reasonable rates. I usually do my own work but I also like the bike put together properly initially, and they did just that.
