Salsa  Beargrease Carbon NX Eagle Fat Bike

This product is not available.

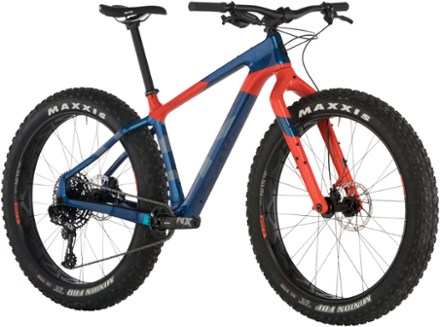

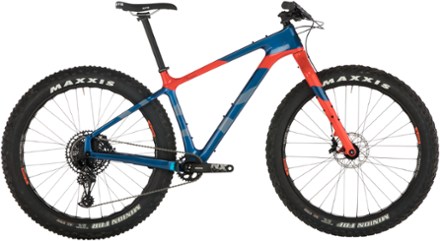

The superlight chassis and the sure-footed rollover of the massive tires reinforces the objective of the Salsa Beargrease Carbon NX Eagle fat bike: to keep you in the express lane wherever you go.

Shop similar products

Features

  • High-modulus carbon-fiber frame offers improved stiffness, better vibration damping, excellent toughness and 350g weight savings over the aluminum version
  • Beargrease geometry features 445mm chainstays, longer front/center, short stems and wide bars to create room to move and add confidence while maneuvering on tight rails
  • Geometry results in a fat bike that rides like a trail bike; it's stable, steers well in loose conditions and still remains nimble and agile despite massive wheels and tires
  • A low bottom bracket height keeps your center of gravity low, making dabbing, dismounting and remounting easier
  • 27.5 x 4 in. wheel and tire size provides increased rollover, a longer contact patch and the flotation of a 5 in. tire without the added rolling resistance
  • Kingpin carbon fork is lightweight and durable, and features an amazing array of accessory bosses to help you make the most of your bike; suspension fork compatible
  • Optimal drivetrain design with narrow Q-factor cranks creates less knee stress
  • Internal sleeved cable routing improves shifting performance in poor conditions, increases time between maintenance intervals and makes running new cables and housing easy
  • Compatible with 30.9mm dropper seatposts (not included) for true trail bike riding experiences and features stealth routing
  • Rear rack compatible; designed for use with the Salsa Alternator 170/177 rear rack, with the addition of a Salsa Rack-Lock seat collar (not included)
  • Multiple wheel and tire fit
  • Multiple accessory frame mounts
  • NOTE: Specs and images are subject to change based on component availability

Imported.

This bike comes with Coast to Coast Support, which includes:
  • 1 year of free adjustments (see more below)
  • In-store bike assembly
  • Pickup in store or curbside
  • Bike experts available at 170+ bike shops
REI Co-op Members get more:
  • 20% off shop services
  • Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

View the Salsa Beargrease Product LineView all Salsa

Technical Specs

Best Use

Mountain Biking

Mountain Bike Style

Trail

Frame

Beargrease Carbon V2

Fork

Kingpin Carbon

Bike Suspension

No Suspension

Crankset

SRAM NX Eagle DUB, 30T

Shifters

SRAM NX Eagle

Rear Derailleur

SRAM NX Eagle

Rear Cogs

SRAM PG 1230 Eagle 11-50t

Number of Gears

12

Brake Type

Hydraulic Disc Brake

Brakes

SRAM Guide T, Centerline 160mm rotors

Rims

SUN Ringle Muleft SL 80 27.5" x 80mm

Front Hub

SUN Ringle SRC 150mm Hub

Rear Hub

SUN Ringle SRC 197mm Hub

Wheel Size

27.5 inches

Tires

Maxxis Minion FBF Front and FBR Rear, 27.5" x 3.8", 120 tpi

Tire Width

3.8 inches

Handlebar Shape

Flat Bar

Handlebar

Salsa Salt Flat /Rustler (size specific)

Stem

Salsa Guide Trail

Seat Post

Salsa Guide

Saddle

WTB Volt Comp

Pedals

Sold separately

Headset

Cane Creek 40

Chain

SRAM Eagle

Weight

Unavailable

Gender

Unisex

Size Chart

Salsa Bikes (136722)
SMLXL
Height Range165-175 cm175-183 cm183-190 cm190-UP cm
Reach408.4426.5444.7462.8
Stack597.4606.7616.0625.3
Effective Top Tube591.0612.0633.0654.0
Seat Tube Center-Top406444483521
Standover Height726.6744.4774.8804.0
Head Tube Length108118128138
Head Tube Angle (degrees)68.5668.5668.5668.56
Seat Tube Angle (degrees)73737373
Wheelbase1107.41129.21151.01172.9
Chainstay440440440440
Fork Offset51515151

Sizing Notes

Measurements are stated in millimeters unless otherwise indicated.

How we measure bikes

  1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
  2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
  3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
  4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
  5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
  6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
  7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
  8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
  9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
  10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
  11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
  12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
