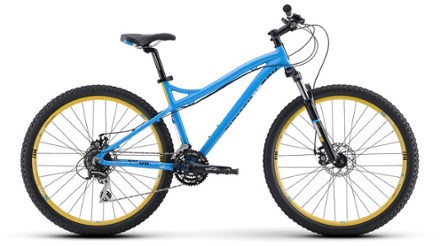

Diamondback Lux 27.5 Women's Bike - 2017
This product is not available.
The Diamondback Lux 27.5 is a nimble trail bike that helps you rocket up climbs, yet remains stable through rough sections and descents so you can learn to charge singletrack with confidence.
Shop similar productsKey Details
- Women-specific fit aluminum alloy frame has added standover clearance for comfort and stability
- Geometry lends itself to true trail riding, with a balanced feel that lets you get the most out of every situation
- 27.5 in. wheels provide great traction and roll smoothly over obstacles
- SR Suntour XCT 80 mm suspension fork provides a smooth ride and helps you maintain control on rough trails
- Shimano shifters and derailleurs deliver reliable performance through 24 speeds
- Disc brakes provide great stopping power so you feel secure and in control
- NOTE: Specs and images are subject to change based on component availability
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Mountain Bike Style | Trail |
| Frame | Women-specific double-butted 6061-T6 aluminum |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour XCT 27.5, 80mm travel, coil spring with preload |
| Fork Travel | 80 millimeters |
| Crankset | SR Suntour XCT, 42/32/22T |
| Bottom Bracket | Square Taper - 5pc |
| Shifters | Shimano Altus EF-51 Easyfire, 3x8 speed |
| Front Derailleur | Shimano Tourney TY500 |
| Rear Derailleur | Shimano Acera M360, 8-speed |
| Rear Cogs | Shimano HG-31, 8-speed cassette, 11-32T |
| Number of Gears | 24 gear(s) |
| Brake Type | Mechanical Disc Brake |
| Brakes | Tektro Aries mechanical disc, with 160mm front and rear rotors |
| Brake Levers | Shimano Altus EF-51 |
| Rims | DB SL-7 27.5" 32h doublewall |
| Front Hub | 32h SL-7 Alloy with CNC disc mount |
| Rear Hub | 32h SL-7 Alloy with CNC disc mount, cassette |
| Wheel Size | 27.5 inches |
| Tires | Chaoyang Hornet 27.5 x 2.1 |
| Tire Width | 2.1 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | DB Laser Bar, Devine women-specific width 720mm, 15mm rise, 31.8mm bar bore |
| Stem | DB 3D Forged, 7 rise, 31.8 bar bore |
| Seat Post | DB Laser Micro Adjust 30.9mm |
| Saddle | Devine Edition MTB |
| Pedals | DB4L Alloy platform |
| Headset | FSA 1 1/8" zero stack with drop-in style cartridge bearings |
| Chain | KMC Z82, 8-speed |
| Weight | Unavailable |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Women's |
| S | M | L | |
|---|---|---|---|
| Height Range | 5'4" - 5'7" | 5'7" - 5'10" | 5'10" - 6'1" |
| Reach | 393 | 416 | 427 |
| Stack | 526 | 546 | 555 |
| Effective Top Tube | 555 | 580 | 595 |
| Seat Tube Center-Top | 380 | 430 | 480 |
| Standover Height | 639 | 647 | 664 |
| Head Tube Length | 95 | 105 | 115 |
| Head Tube Angle (degrees) | 68 | 68 | 68 |
| Seat Tube Angle (degrees) | 73.2 | 73.3 | 73.4 |
| Bottom Bracket Height | 327 | 327 | 327 |
| Wheelbase | 1070 | 1096 | 1112 |
| Chainstay | 430 | 430 | 430 |
| Fork Offset | 46 | 46 | 46 |
Sizing Notes
Bike measurements are stated in millimeters.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
