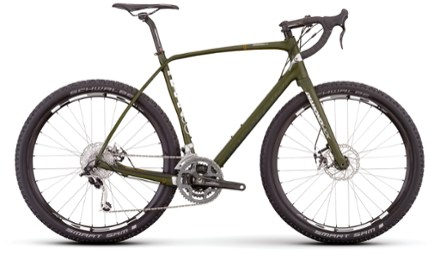

Diamondback  Haanjo EXP Carbon Bike - 2017

This product is not available.

Maximizing its potential as a deep-woods explorer, the Diamondback Haanjo EXP Carbon bike's long-distance geometry and vibration-damping road feel open up a world of bikepacking possibilities.

Shop similar products

Features

  • Hand-built carbon EXP frame with Endurance geometry is light and tough
  • 2.1 in. wide tires on 27.5 in. rims embrace cyclocross adventure
  • Mechanical disc brakes and bar-end shifters offer ease of on-trail maintenance and reliability
  • DB Gravel flat-mount full carbon disc fork; 1.5 in. steerer; 12mm thru-axle; fender/low rider mounts
  • Shimano 3 x 9 drivetrain to handle bikepacking and touring
  • HED Tomcat disc wheels
  • NOTE: Specs and images are subject to change based on component availability

Imported.

This bike comes with Coast to Coast Support, which includes:
  • 1 year of free adjustments (see more below)
  • In-store bike assembly
  • Pickup in store or curbside
  • Bike experts available at 170+ bike shops
REI Co-op Members get more:
  • 20% off shop services
  • Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

View the Diamondback Haanjo Product LineView all Diamondback

Technical Specs

Best Use

Cyclocross

Bikepacking

Frame

Carbon

Fork

Carbon

Bike Suspension

No Suspension

Crankset

Shimano M591, 48/36/26T

Bottom Bracket

Shimano BB52

Shifters

Shimano Dura Ace BS77, Bar End Shifters, 3x9 Speed

Front Derailleur

Shimano Deore M591, Down Swing, Dual Pull, 31.8mm Clamp Diameter

Rear Derailleur

Shimano XT M772, Shadow, 9 Speed

Rear Cogs

Shimano XT M770, Cassette, 9 Speed, 11-34T

Number of Gears

27

Brake Type

Mechanical Disc Brake

Brakes

TRP Spyre Mechanical Disc, 160mm rotors

Brake Levers

TRP RRL Non-Integrated

Rims

HED Tomcat Disc, 32h, 21mm Internal Width, Tubeless Ready

Front Hub

32h Alloy, Sealed Cartridge, HighLow Flange, 12mm Thru-axle

Rear Hub

32h Alloy, Sealed Cartridge, HighLow Flange, 142x12mm Thru-axle

Wheel Size

27.5 inches

Tires

Schwalbe Smart Sam, Performance, 27.5x2.1"

Tire Width

2.1 inches

Handlebar Shape

Drop Bar

Handlebar

DB X-Durance Gravel Bar, 8 Flare, 31.8mm Bar Bore

Stem

DB X-Durance 3D Forged Alloy, +/-7 Rise, 31.8mm Bar Bore

Seat Post

DB X-Durance, Alloy 27.2mm

Saddle

DB Eldorado

Pedals

Wellgo Alloy Road

Headset

FSA NO.42, Sealed Cartridge for Tapered Headtube

Chain

KMC X9, 9 Speed

Weight

21 lbs. 5 oz.

Bike Weight

Bike weight is based on median size, as sold, or the average of two median sizes.

Gender

Unisex

Size Chart

Diamondback Bikes (108760)
50 cm53 cm56 cm59 cm
Height Range5'4" to 5'7"5'7" to 5'10"5'10" to 6'1"6'1" to 6'4"
Reach374371373378
Stack543570593622
Effective Top Tube525540560580
Seat Tube Center-Top500530560590
Standover Height788808834858
Head Tube Length130155175200
Head Tube Angle (degrees)69707172
Seat Tube Angle (degrees)74.573.572.572
Bottom Bracket Height283283283283
Wheelbase1028102510251028
Chainstay430430430430
Fork Offset45454545

Sizing Notes

Bike measurements are stated in millimeters.

How we measure bikes

  1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
  2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
  3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
  4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
  5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
  6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
  7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
  8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
  9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
  10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
  11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
  12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.

Reviews
3 reviews with an average rating of 5.0 out of 5 stars

Ratings Snapshot

Product Rating

3 out of 3 (100%) reviewers recommend this product

Review this Product

Adding a review will require a valid email for verification

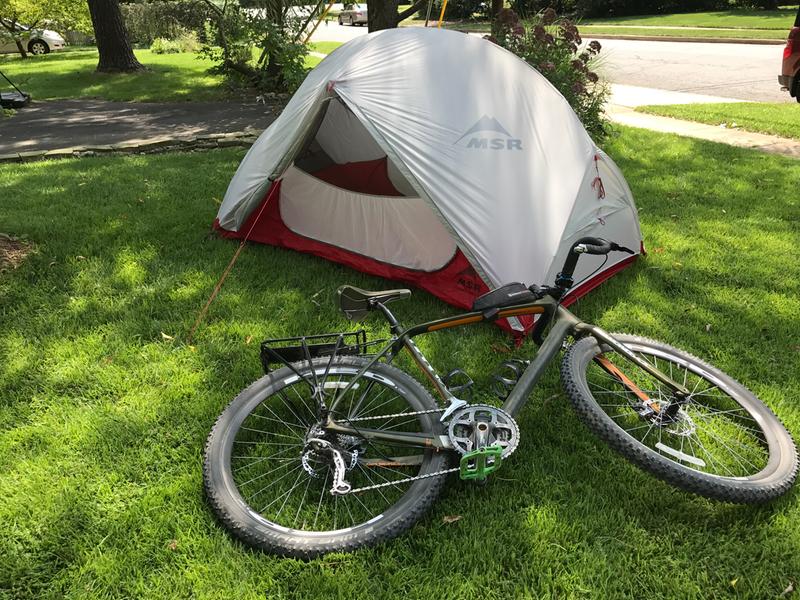

Customer Images

Adventure Man
McLean, VA, United States
Rated 5.0 out of 5 stars

Outstanding Adventure Bike!

7 years ago

The Diamondback Haanjo EXP Carbon is an outstanding adventure bike. I've had it for a couple of months and have logged about a thousand miles on roads, trails, singletrack, and gravel. My first ride was from Pittsburgh to DC on the GAP/C&O Canal over 4 days. It did great on the crushed gravel of the GAP. The C&O was a mud pit, and the Haanjo tracked through without problem. The C&O had a big closure at Paw Paw, and I was detoured to a singletrack trail over the mountain. In a rainstorm, the Haanjo and I pedaled up and over and my buddies walked their bikes. It is comfortable on long rides. It pedals fast. All of the components are a great fit. The bar-end shifters work great. The brakes are powerful. I made one upgrade from the stock saddle to a Brooks Cambium. The stock saddle is perfectly adequate, but the Brooks is my choice for long tours. The Smart Sams are great tires on the gravel and surprisingly fast on pavement. I've also added a Topeak rack and a pair of Ortlieb panniers. I've hauled more than 25 lbs of camping grear on a recent bikepacking trip. The bike handles fantastic when fully loaded. I highly recommend this bike!

Yes , I recommend this product
Helpful?
Kurt from Chadron
Chadron, NE
Rated 5.0 out of 5 stars

Should be Great for Long Hauling

7 years ago

This is a great gravel grinder. I got it last fall with the idea of adventure touring. I managed a dry run camping trip before winter set it. It did great on forest roads and single track when I carried enough gear for a longer trip. I have made only a couple modifications -- longer reach stem, tougher tires, and a full array racks and bags. I will live off of it for two months this upcoming summer. I hope to see as little pavement as humanly possible. The first time I road it on a test ride it felt a lot like my old Reynolds 531 road bike. I am 6' 1" and riding the 56 cm.

Yes , I recommend this product
Helpful?
Tomg
Oakland, CA, United States
Rated 5.0 out of 5 stars

Meets expectations and a blast to ride

8 years ago

I was looking for a bike that had mountain bike capability but cyclo-cross quickness and road manners. A do-all bike that can go bikepacking. Contenders were the Salsa Cutthroat (sold out for 2017), Fezzari Shafer and Niner RLT (also sold out). Given this bike cost less than those others and I got to exercise my REI dividend made for an irresistible purchase. It feels quick and nimble with plenty of stability on paved descents. As a few magazine reviewers have noted, like some other "gravel bikes", the bottom bracket is lower than typical Mtn or cross bikes and I've noticed this bumping the pedals on trails with large rocks and roots. The low bottom bracket is otherwise not a issue and no doubt contributes to a more stable feeling bike at high speeds. One improvement that I made was to swap the handle bars for something with a flare. For one I prefer a wider flared handle bar and also I was occasionally hitting my knees on the bar-end shifters when climbing out of the saddle. And regarding the shifters, I would have preferred an integrated shifter but I can live with the bar-ends. Bottomline: heck of a deal and would encourage anyone shopping around for cross / gravel bike to look closely at this one.
