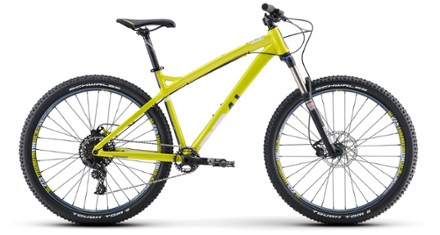

Diamondback Sync'r 27.5" Bike - 2017
This product is not available.
The new Diamondback Sync'r has one goal: to excel on every trail in sight. Its frame is built for abuse with formed tubes, a tapered head tube, and a thru-axle rear end for all-mountain performance.
Shop similar productsKey Details
- Hand-built aluminum alloy hardtail frame performs on trail or in the park
- 27.5" Diamondback SL-7 wheelset is light and nimble
- RockShox Recon Silver 130mm travel suspension fork takes the edge off rocks and roots
- SRAM NX 1x11-speed drivetrain
- Tektro hydraulic disc brakes stop on a dime
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Mountain Bike Style | All-mountain |
| Frame | 6061-T6 aluminum alloy |
| Bike Suspension | Front Suspension |
| Fork | RockShox Recon Silver |
| Fork Travel | 130 millimeters |
| Crankset | SRAM NX 1x, with X-Sync 30T Chain Ring |
| Bottom Bracket | SRAM GXP |
| Shifters | SRAM NX 11 Speed X-Actuation Trigger |
| Rear Derailleur | SRAM NX X-Horizon, 11 Speed |
| Rear Cogs | SRAM PG1130, 11 Speed, 11-42T |
| Number of Gears | 11 |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Tektro Gemini Hydraulic Disc w/ 180mm Front /160mm Rear Rotors |
| Brake Levers | Tektro 2 finger Alloy Linear w/ Reach Adjust |
| Rims | 32h Diamondback SL-7 Doublewall |
| Front Hub | 130 |
| Rear Hub | 32h SL-7,142x12mm Thru-Axle, Alloy Cassette w/ CNC Disc mount |
| Wheel Size | 27.5 inches |
| Tires | Schwalbe Tough Tom 27 x 2.35 |
| Tire Width | 2.35 inches |
| Handlebar Shape | Flat Bar |
| Handlebar | Race Face Respond, 785mm Wide, 31.8 Bar Bore |
| Stem | Race Face Respond, 50mm Reach, 31.8 Bar Bore |
| Seat Post | DB Alloy Micro Adjust 30.9mm |
| Saddle | DB Sync'r Saddle |
| Pedals | DB4L Alloy Platform |
| Headset | FSA NO.57, Sealed Cartridge for Tapered Headtube |
| Chain | SRAM NX 1x, with X-Sync 30T Chain Ring |
| Weight | Unavailable |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5'4" to 5'7" | 5'7" to 5'10" | 5'10" to 6'1" | 6'1" to 6'4" |
| Reach | 398 | 417 | 432 | 446 |
| Stack | 577 | 595 | 614 | 633 |
| Effective Top Tube | 575 | 600 | 620 | 640 |
| Seat Tube Center-Top | 400 | 450 | 500 | 550 |
| Standover Height | 728 | 769 | 799 | 830 |
| Head Tube Length | 105 | 125 | 145 | 165 |
| Head Tube Angle (degrees) | 68 | 68 | 68 | 68 |
| Seat Tube Angle (degrees) | 73 | 73 | 73 | 73 |
| Bottom Bracket Height | 305 | 305 | 305 | 305 |
| Wheelbase | 1087 | 1113 | 1135 | 1157 |
| Chainstay | 430 | 430 | 430 | 430 |
| Fork Offset | 44 | 44 | 44 | 44 |
Sizing Notes
Bike measurements are stated in millimeters.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
