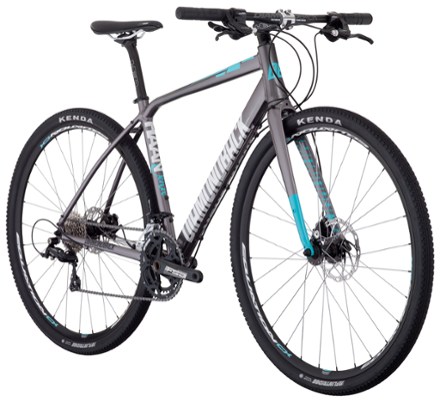

Diamondback HaanJenn Women's Bike - 2017
This product is not available.
A go-anywhere bike in the truest sense, the Diamondback HaanJenn is a trusted commuter, gravel or just getting-around machine.
Shop similar productsKey Details
Wheel Size
700c
Number of Gears
18
- Women-specific aluminum frame and fork put you in a comfortable riding position, more stable than a traditional race bike
- A slightly longer wheelbase, wide tires, disc brakes, and comfortable flat handlebars add up to a solid and responsive ride on any surface—paved or not
- 2x9 Shimano drivetrain offers a wide range of gears in a simple package, keeping the bike swift and quiet as you climb hills or hammer the flats
- Mechanical disc brakes offer nuanced and powerful stopping power
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View all Diamondback- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Urban Cycling |
|---|---|
| Frame | Aluminum |
| Fork | Aluminum |
| Crankset | FSA Gossamer Cross Mega Exo, 46/36T |
| Bottom Bracket | FSA Mega Exo |
| Shifters | Shimano Sora SL-3500, Flat Bar, 2x9 Speed |
| Front Derailleur | Shimano Sora FD-3500, 31.8 Band Clamp |
| Rear Derailleur | Shimano Sora RD-R3000, 9 Speed |
| Rear Cogs | Shimano Tiagra HG50, 9 Speed, 11-32T |
| Number of Gears | 18 |
| Brakes | Tektro Lyra Flat Mount Mechanical Disc, w/ 160mm Front / 140mm Rear Rotors |
| Brake Levers | Tektro 2 Finger Alloy Linear, For Flat Mount Disc |
| Rims | DB Equation CX 700c 28h, Doublewall |
| Front Hub | 28h Alloy |
| Rear Hub | 28h Alloy |
| Wheel Size | 700c |
| Tires | Kenda Flintridge, 700x35c |
| Tire Width | 35 millimeters |
| Handlebar Shape | Flat Bar |
| Handlebar | DB Flat bar, 680mm wide,31.8mm |
| Stem | DB X-Durance 3D forged, +/-7 Rise 31.8 |
| Seat Post | DB X-Durance, alloy 27.2mmx350mm |
| Saddle | DB Performance womens road |
| Pedals | Wellgo alloy road |
| Headset | FSA No.42B sealed 1-1/8"/1.5" ACB integrated |
| Chain | KMC Z99 |
| Weight | Unavailable |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Women's |
Diamondback Bikes (108637)
| 50 cm | 53 cm | 56 cm | 59 cm | |
|---|---|---|---|---|
| Height Range | 5'0" to 5'4" | 5'4" to 5'7" | 5'7" to 5'10" | 5'10" to 6'1" |
| Reach | 379 | 370 | 370 | 376 |
| Stack | 543 | 556 | 572 | 588 |
| Effective Top Tube | 515 | 525 | 535 | 550 |
| Seat Tube Center-Top | 410 | 440 | 470 | 500 |
| Standover Height | 724 | 748 | 774 | 800 |
| Head Tube Length | 120 | 130 | 145 | 160 |
| Head Tube Angle (degrees) | 70 | 71 | 71.5 | 72 |
| Seat Tube Angle (degrees) | 76 | 74.5 | 74 | 73.5 |
| Bottom Bracket Height | 283 | 283 | 283 | 283 |
| Wheelbase | 1029 | 1015 | 1016 | 1021 |
| Chainstay | 430 | 430 | 430 | 430 |
| Fork Offset | 50 | 50 | 50 | 50 |
Sizing Notes
Bike measurements are stated in millimeters.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
