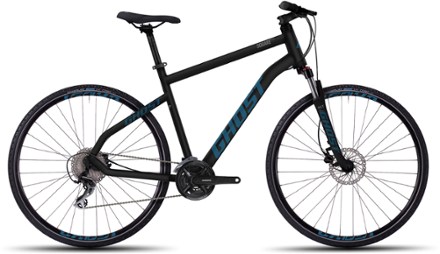

GHOST Square Cross 3 Bike - 2017
This product is not available.
Featuring sleek lines, disc brakes and 60mm of plush front suspension, the GHOST Square Cross bike is the perfect choice for the path or trail.
Shop similar productsKey Details
Wheel Size
700c
Fork Travel
60
Number of Gears
27
- Lightweight aluminum alloy frame employs ultra-sleek aesthetics
- RST Neon MLO fork delivers 60mm of trail-smoothing travel
- Shimano triple crank and Acera 9-speed rear derailleur provide 27 versatile gear combinations
- Tektro ACC hydraulic disc brakes and rotors provide worry-free stopping power
- REI is proud to be the exclusive U.S. retailer of GHOST brand bikes
- Pedals sold separately
- NOTE: Specs and images are subject to change based on component availability
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the GHOST Square Product LineView all GHOST- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Recreational Cycling |
|---|---|
| Frame | Square Cross aluminum alloy |
| Bike Suspension | Front Suspension |
| Fork | RST Neon MLO |
| Fork Travel | 60 |
| Crankset | Shimano FC 371 48/36/26 |
| Bottom Bracket | Unavailable |
| Shifters | Shimano 370 SL |
| Front Derailleur | Shimano 370 |
| Rear Derailleur | Shimano Acera |
| Rear Cogs | Shimano 11-32, 9-speed |
| Number of Gears | 27 |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Tektro ACC hydraulic disc 160mm |
| Brake Levers | Tektro ACC hydraulic disc |
| Rims | ALEX TD19 700C |
| Front Hub | GHOST Disc QR |
| Rear Hub | GHOST Disc QR |
| Wheel Size | 700c |
| Tires | Schwalbe CX Comp |
| Tire Width | 38 millimeters |
| Handlebar Shape | Riser Bar |
| Handlebar | GHOST Rizer 660mm 31.8mm |
| Stem | GHOST AS GH2 31.8mm |
| Seat Post | GHOST Light SP DC 1 31.6mm |
| Saddle | GHOST 3050 DRN |
| Pedals | Sold separately |
| Chain | Shimano 9-speed |
| Weight | 29 |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
GHOST Bikes (102967, 102966)
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5'1"-5'6" | 5'5"-5'11" | 5'10"-6'3" | 6'1-6'7" |
| Reach | 391 | 393 | 400 | 403 |
| Stack | 636 | 641 | 664 | 683 |
| Effective Top Tube | 580 | 595 | 610 | 625 |
| Seat Tube Center-Top | 470 | 520 | 570 | 620 |
| Standover Height | 735 | 770 | 815 | 855 |
| Head Tube Length | 160 | 165 | 185 | 205 |
| Head Tube Angle (degrees) | 70 | 70 | 71 | 71 |
| Seat Tube Angle (degrees) | 73.5 | 72.5 | 72.5 | 72 |
| Bottom Bracket Height | -60 | -60 | -60 | -60 |
| Wheelbase | 1105 | 1108 | 1112 | 1121 |
| Chainstay | 455 | 455 | 455 | 455 |
Sizing Notes
All measurements are stated in millimeters or degrees unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
