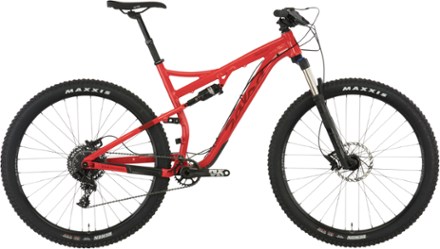

Salsa Deadwood NX1 29+ Bike
This product is not available.
Whether you're racing or connecting widely-spaced points on unfamiliar maps, the Salsa Deadwood NX1 29+ full-suspension bike gives you rolling prowess and a corner-crushing ride.
Shop similar productsKey Details
Wheel Size
29 inches
Fork Travel
120 millimeters
Number of Gears
11 gear(s)
- Split Pivot rear suspension eliminates unwanted suspension movement during acceleration and braking for maximum traction and pedaling efficiency
- Backcountry singletrack and endurance racing-specific suspension travel, thanks to RockShox® Recon RL 120mm travel fork and RockShox Monarch RT3 Debonair rear shock
- Ample tire clearance—designed to use rear tires ranging from 2.6 in. to 3.0 in., in widths of up to 45mm rims via Boost 148 spacing
- Geometry pairs slack and low "trail bike" style geometry—68° head angle and 45mm BB drop—with travel amounts usually reserved for steep race bikes
- 6066-T6 aluminum stays create a strong, lightweight frame
- Front triangle is capable of fitting a full-size (28 fl. oz.) water bottle
- PressFit 41 x 92mm bottom bracket w/ ISCG05 tabs—compatible with all 1x and 2x standard mountain cranks, both GXP and 24mm spindle types
- Modular front derailleur bracket; replaceable derailleur hanger
- Replaceable sealed cartridge bearings
- Dropper post compatible
- Pedals sold separately
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View all Salsa- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Mountain Bike Style | Trail |
| Frame | Deadwood Aluminum |
| Bike Suspension | Full Suspension |
| Fork | RockShox Recon RL |
| Fork Travel | 120 millimeters |
| Rear Shock | RockShox Monarch RT3 Debonair |
| Crankset | SRAM NX Direct Mount, 30T |
| Shifters | SRAM NX |
| Rear Derailleur | SRAM NX1 Long Cage |
| Rear Cogs | SunRace CSM57, 11-42t |
| Number of Gears | 11 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | SRAM Level, 180mm rotor |
| Brake Levers | SRAM Level |
| Rims | Sun Ringle DUROC 40 |
| Front Hub | Formula |
| Rear Hub | Formula |
| Wheel Size | 29 inches |
| Tires | Maxxis Rekon 29, 60tpi EXO/TR |
| Tire Width | 2.6 inches |
| Handlebar Shape | Flat Bar |
| Handlebar | Salsa Salt Flat (SM) Rustler (MD,L,XL) |
| Stem | Salsa Guide Trail |
| Seat Post | KS eTen I |
| Saddle | WTB Sport |
| Pedals | Sold separately |
| Headset | Cane Creek 5 Series |
| Chain | SRAM 1110 |
| Dropper Post | Yes |
| Weight | 34 lbs. 3 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
Salsa Bikes (127500)
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 168 - 175cm | 175 - 183cm | 183 - 190cm | 190cm and up |
| Reach | 410.2 | 427.4 | 447.4 | 464.7 |
| Stack | 605.6 | 614.9 | 614.9 | 624.2 |
| Effective Top Tube | 590.2 | 610.2 | 630.2 | 650.2 |
| Seat Tube Center-Top | 407 | 457 | 508 | 559 |
| Standover Height | 739.5 | 761.1 | 783.3 | 800.9 |
| Head Tube Length | 100 | 110 | 110 | 120 |
| Head Tube Angle (degrees) | 68 | 68 | 68 | 68 |
| Seat Tube Angle (degrees) | 73.4 | 73.4 | 73.4 | 73.4 |
| Wheelbase | 1137.9 | 1158.9 | 1178.9 | 1199.9 |
| Chainstay | 449 | 449 | 449 | 449 |
| Fork Offset | 51 | 51 | 51 | 51 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
