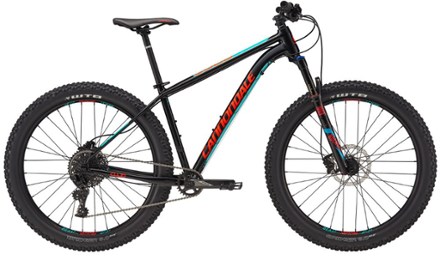

Cannondale Cujo 1 27.5"+ Bike - 2017
This product is not available.
Built to make mountain biking fun, the Cannondale Cujo 1 27.5 in.+ bike delivers with an easy to manage 1x11 drivetrain, big grippy tires, stable geometry and a lightweight aluminum alloy frame.
Shop similar productsKey Details
Wheel Size
27.5 inches
Fork Travel
120 millimeters
Number of Gears
11
- Premium 6069 and 6061 SmartForm C2 aluminum alloy construction delivers the strongest, lightest, best handling frame possible
- Double-pass welds provide stronger, smoother joints and eliminate the need for internal reinforcements or external welded-on gussets
- Frame is heat treated after welding to maximize the strength and hardness of the aluminum, increasing long-term durability
- SAVE micro-suspension technology uses engineered flex in the frame and fork to reduce vibration and shock for consistent tire contact and faster roll over uneven terrain
- All SRAM GX 1x11 drivetrain features an intuitive trigger shifter and responsive rear derailleur to deftly move through the 11 gears
- Hydraulic disc brakes deliver superb stopping power
- RockShox Recon Silver RL Boost 27+ front fork offers 120mm of travel to smooth out the ride
- WTB Ranger Comp tires offer superb traction through mud, over rock and up steep climbs
- NOTE: Specs and images are subject to change based on component availability
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Cannondale Cujo Product LineView all Cannondale- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Mountain Bike Style | Trail |
| Frame | SmartForm C2 Alloy |
| Bike Suspension | Front Suspension |
| Fork Travel | 120 millimeters |
| Crankset | FSA Comet MegaExo Boost w/ 30T Megatooth narrow/wide chainring |
| Bottom Bracket | FSA MegaExo Boost |
| Shifters | SRAM GX1, 11-speed |
| Front Derailleur | Not applicable |
| Rear Derailleur | SRAM NX, 11-speed |
| Rear Cogs | SRAM NX, 11-42, 11-speed |
| Number of Gears | 11 |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano Deore hydraulic disc, 180/160mm |
| Brake Levers | Shimano Deore |
| Rims | Cannondale Beast, 27.5x40mm inner, tubeless ready |
| Front Hub | Formula 110x15 |
| Rear Hub | Boost QR 141x9mm with HG driver |
| Wheel Size | 27.5 inches |
| Tires | WTB Ranger Comp, DNA Compound, 27.5x3.0" |
| Tire Width | 3.0 inches |
| Handlebar Shape | Flat Bar |
| Handlebar | Cannondale C3 riser, Alloy, 4 degree upsweep, 9 degree backsweep, 760x15mm |
| Stem | Cannondale C3, 6061 Alloy, 1-1/8", 31.8, 60mm |
| Seat Post | Cannondale C3, 6061 alloy, 27.2x350mm (S,M) 400mm (L,X) |
| Saddle | Cannondale Stage 3 |
| Pedals | Cannondale platform |
| Headset | Tange Seiki Semi-Integrated tapered |
| Chain | SRAM PC-1110, 11-speed |
| Weight | 30 lbs. 2 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
Cannondale Bikes (109123)
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5’3”- 5’6” | 5’6” - 5’9” | 5’9” - 6’0” | 6’0 - 6’3” |
| Reach | 38.9 | 39.9 | 42.3 | 43.9 |
| Stack | 62.7 | 64.5 | 64.5 | 65.9 |
| Effective Top Tube | 57.1 | 59.3 | 61.7 | 63.7 |
| Seat Tube Center-Top | 38.5 | 43.5 | 48.5 | 53.5 |
| Standover Height | 74.6 | 78.5 | 81.6 | 85.2 |
| Head Tube Length | 9.5 | 11.5 | 11.5 | 13 |
| Head Tube Angle (degrees) | 68.5 | 68.5 | 68.5 | 68.5 |
| Seat Tube Angle (degrees) | 73.3 | 73.3 | 73.3 | 73.3 |
| Bottom Bracket Height | 30.8 | 30.8 | 30.8 | 30.8 |
| Wheelbase | 109.8 | 112.2 | 114.6 | 116.7 |
| Chainstay | 44.2 | 44.2 | 44.2 | 44.2 |
| Fork Offset | 5.1 | 5.1 | 5.1 | 5.1 |
Sizing Notes
Measurements are stated in centimeters.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
