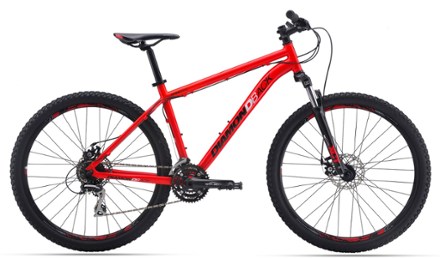

Whether you're a diehard hardtail aficionado or looking for a solid starter mountain bike, the Overdrive won't disappoint. It's a classic aluminum hardtail with a proven, capable and durable design.
Shop similar productsKey Details
- With 24 speeds, a plush 4 in. Suntour suspension fork and powerful disc brakes, it's a no-nonsense bike that's ready to tear up the trail
- 6061-T6 aluminum alloy hardtail frame is hand-built for classic mountain biking
- Custom formed and butted tubing combines light weight and stiffness
- 27.5 wheels roll over obstacles and offer quick handling
- Big knobby tires grip every root and rock, keeping you confident and in control as you explore the trail
- SR Suntour XCT fork delivers 100mm of suspension travel
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Mountain Bike Style | Cross-country |
| Frame | Aluminum |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour XCT 27.5 coil-spring 100 mm travel, Preload Adjust |
| Fork Travel | 100 millimeters |
| Crankset | Suntour XCT, 42/32/22T |
| Bottom Bracket | Sealed Cartridge |
| Shifters | Shimano Altus EF-51 8spd |
| Front Derailleur | Shimano Tourney, top pull, 31.8 |
| Rear Derailleur | Shimano Acera M360 8spd |
| Rear Cogs | Shimano HG-3, 11-32, 8-speed |
| Number of Gears | 24 gear(s) |
| Brake Type | Mechanical Disc Brake |
| Brakes | Tektro Aries Mechanical Disc with 160mm rotors |
| Brake Levers | Shimano Altus EF-51 |
| Rims | DB SL-27 27.5" 32h Double-wall |
| Front Hub | 32h SL-7 Alloy with CNC disc mount |
| Rear Hub | 32h SL-7 Alloy Cassette with CNC disc mount |
| Wheel Size | 27.5 inches |
| Tires | Chaoyang Hornet 27.5x2.1 |
| Handlebar Shape | Flat Bar |
| Handlebar | DB Flat Bar, 720mm wide, Flat Bar, 31.8mm |
| Stem | DB AL6061 Ahead, 31.8mm, 7 |
| Seat Post | DB Laser Micro Adjust 30.9mm |
| Saddle | DB Race saddle |
| Pedals | Wellgo Alloy forged, CNC MTB |
| Headset | Integrated FSA Drop-in ACB upper, Zero Stack lower internal cup and cartridge bearing, 1 1/8" |
| Chain | KMC Z82 |
| Weight | 31 lbs. 11 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
