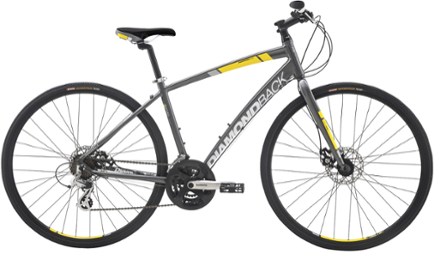

Diamondback Clarity 2 Women's Bike - 2016
This product is not available.
Offering comfort at a great value, the Clarity 2 is a women's hybrid bicycle designed for urban commuting, weekend rides and daily errands.
Shop similar productsKey Details
Wheel Size
700c
Number of Gears
27 gear(s)
- Aluminum alloy frame is durable and lightweight; women-specific geometry allows a comfortable riding position
- Shimano 8-speed drivetrain provides 27 gears to help you face any terrain
- Frame and fork eyelets easily let you mount rack and fenders (not included)
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View all Diamondback- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Recreational Cycling |
|---|---|
| Frame | 6061 aluminum |
| Bike Suspension | No Suspension |
| Fork | Alloy |
| Crankset | Shimano FCM131, 28/38/48 |
| Bottom Bracket | Sealed cartridge |
| Shifters | Shimano EF-51 Easyfire |
| Front Derailleur | Shimano FDM-191 |
| Rear Derailleur | Shimano Acera |
| Rear Cogs | Shimano HG-31, 11-32, 9-speed |
| Number of Gears | 27 gear(s) |
| Brake Type | Mechanical Disc Brake |
| Brakes | Tektro Aries mechanical disc |
| Brake Levers | Shimano EF-51 |
| Rims | Equation R2 |
| Front Hub | Alloy, 32h |
| Rear Hub | Alloy, 32h |
| Wheel Size | 700c |
| Tires | Kenda Kwick Trax, 700 x 32 |
| Tire Width | 32 millimeters |
| Handlebar Shape | Riser Bar |
| Handlebar | DB alloy |
| Stem | DB 3D forged |
| Seat Post | Alloy micro adjust |
| Saddle | DB Performance Hybrid |
| Pedals | DB platform |
| Headset | Integrated |
| Chain | KMC-Z82 |
| Weight | 27 lbs. 8 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Women's |
Diamondback Bikes (890192)
| XS | S | M | |
|---|---|---|---|
| Height Range | 5'1" - 5'4" | 5'4" - 5'7" | 5'7" - 5'10" |
| Reach | 379 | 382 | 400 |
| Stack | 530 | 549 | 577 |
| Effective Top Tube | 541 | 551 | 574 |
| Seat Tube Center-Top | 350 | 400 | 450 |
| Standover Height | 622 | 673 | 718 |
| Head Tube Length | 100 | 120 | 150 |
| Head Tube Angle (degrees) | 71 | 71 | 71 |
| Seat Tube Angle (degrees) | 73 | 73 | 73 |
| Bottom Bracket Height | 295 | 295 | 295 |
| Wheelbase | 1032 | 1042 | 1069 |
| Chainstay | 450 | 450 | 450 |
| Fork Offset | 48 | 48 | 48 |
Sizing Notes
Bike measurements are stated in millimeters.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
