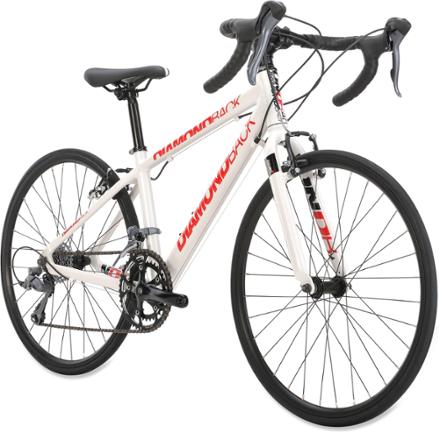

Diamondback Podium 24" Bike
This product is not available.
Modeled after the adult road bikes, the Podium 24 packs all the pint-size features to let them enjoy road rides with you on the weekend and keep them growing with the sport.
Shop similar productsKey Details
- 6061 aluminum alloy frame with replaceable derailleur hanger for durability
- Junior Aero Alloy straight blade fork delivers confidence-inspiring handling
- Shimano 8-speed shifters and derailleurs provides wide range of gears for growing legs
- 24 in. wheels roll fast to keep up with mom and dad
- Alloy drop bar
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Road Cycling |
|---|---|
| Frame | 6061 aluminum |
| Fork | Aluminum |
| Bike Suspension | No Suspension |
| Crankset | Alloy Arm, 48/38 |
| Bottom Bracket | Loose ball |
| Shifters | Shimano Claris |
| Front Derailleur | Shimano Claris |
| Rear Derailleur | Shimano Claris |
| Rear Cogs | Shimano, 11-28, 8-speed |
| Number of Gears | 8 gear(s) |
| Brake Type | Rim |
| Brakes | Promax Mini V |
| Brake Levers | Shimano Claris |
| Rims | DB Equation R |
| Front Hub | DB, 32h |
| Rear Hub | DB, 32h |
| Wheel Size | 24 inches |
| Tires | Haoyang Dolphin, 24 x 1 |
| Tire Width | 1.0 inch |
| Handlebar Shape | Drop Bar |
| Handlebar | Aluminum |
| Stem | Ahead aluminum |
| Seat Post | Alloy Micro Adjust |
| Saddle | Jr. Equip |
| Pedals | Composite platform |
| Headset | Threadless 1-1/8" |
| Chain | KMC HG50 |
| Weight | 20 lbs. 12 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Boys' Girls' |
| 24 in | |
|---|---|
| Height Range | 53" - 56" |
| Reach | 343 |
| Stack | 520 |
| Effective Top Tube | 477 |
| Seat Tube Center-Top | 345 |
| Standover Height | 665 |
| Head Tube Length | 120 |
| Head Tube Angle (degrees) | 71 |
| Seat Tube Angle (degrees) | 73 |
| Bottom Bracket Height | 241 |
| Wheelbase | 888 |
| Chainstay | 365 |
| Fork Offset | 37 |
Sizing Notes
Bike measurements are stated in millimeters.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
Review this Product
Adding a review will require a valid email for verification
Overall good value if you are willing to tinker
Overall good value. Frame is good, components are good. Gearing is nice and all. I do have one major problem with it though. Safety! Brake is marginal at best. It has STI shifter and V brake! As I found out later, my kid almost couldn't stop in time which could have been disastrous... Diamondback really should be putting proper brake on this bike for the matching lever. For those of you who is more mechanically inclined you can put probem solvers travel agent to increase pull from brake which is what I did. (basically makes brake move in twice faster)
