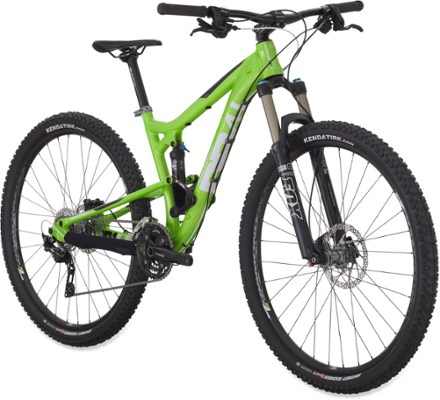

Diamondback Sortie 2 29er Bike - 2015
This product is not available.
A sweet ride destined to conquer tough cross-country trails, the Diamondback Sortie 2 29er is a fully capable rig thanks to its 130mm Fox suspension, responsive frame and powerful components.
Shop similar productsKey Details
- 6061-T6 aluminum frame boasts an array of hydroformed and butted-and-formed tubes along with a tapered head tube to deliver a strong, stiff and responsive ride
- The heart of the Sortie 2 is the Knuckle Box platform, which lowers the center of gravity of the suspension to optimize efficiency and effortlessly absorb small bumps
- Fox 32 Float CTD 29 Air fork has 130mm of travel that can be easily tuned between the 3 CTD settings (Climb, Trail, Descend); 15mm thru axle helps stiffen the front
- Fox Float CTD Air rear shock features Boost Valve technology along with the CTD ProPedal platform to efficiently absorb bumps with great protection from bottoming out
- 3x10 Shimano drivetrain boasts an XT Shadow Plus rear derailleur and SLX front derailleur guided by SLX shifters; triple crank and 11-36t cassette supply versatile gearing
- Shimano hydraulic disc brakes put responsive, progressive braking control in your hands with a 180mm rotor up front and 160mm rotor in the back
- Sturdy WTB Speed Disc double-walled rims are outfitted with WTB Wolverine Comp folding tires, which handle everything from loose to hardpack trails
- Oversize 1.5 in. tapered steerer on the fork pairs with the tapered head tube to ensure plenty of strength and handling precision
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Frame | 6061 aluminum |
| Bike Suspension | Full Suspension |
| Fork | Fox 32 Float CTD, 130mm travel with 15mm thru-axle |
| Fork Travel | 130 millimeters |
| Rear Shock | Fox Float CTD |
| Crankset | Shimano Deore, 42/32/24 |
| Bottom Bracket | Shimano |
| Shifters | Shimano SLX |
| Front Derailleur | Shimano SLX |
| Rear Derailleur | Shimano XT, Shadow Plus |
| Rear Cogs | Shimano SLX, 11-36, 10-speed |
| Number of Gears | 30 gear(s) |
| Brakes | Shimano M447 hydraulic disc |
| Brake Levers | Shimano Deore |
| Rims | DB SL7 |
| Front Hub | Alloy, 32h with 15mm thru-axle |
| Rear Hub | Alloy, 32h with 142x12 thru-axle |
| Wheel Size | 29 inches |
| Tires | Kenda Honey Badger, 29 x 2.20 |
| Handlebar Shape | Riser Bar |
| Handlebar | DB Laser |
| Stem | Easton EA50 |
| Seat Post | Easton EA50 |
| Saddle | DB Race M-series |
| Pedals | Not included |
| Headset | FSA No. 57 |
| Chain | Shimano HG75 |
| Weight | 34 lbs. 8 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
