Details

  • 6061-T6 weapons-grade aluminum frame boasts an array of hydroformed and butted and formed tubes along with a tapered head tube to deliver a strong, stiff and responsive ride
  • The heart of the Sortie 2 is the Knuckle Box platform, which lowers the center of gravity of the suspension to optimize efficiency and effortlessly absorb small bumps
  • Fox 32 Float CTD 29 Air fork has 120mm of travel that can be easily tuned between the 3 CTD settings (Climb, Trail, Descend); 15mm thru axle helps stiffen the front
  • Fox Float CTD Air rear shock features Boost Valve technology along with the CTD ProPedal platform to efficiently absorb bumps with great protection from bottoming out
  • 3x10 Shimano drivetrain boasts an XT Shadow Plus rear derailleur and SLX front derailleur guided by SLX shifters; triple crank and 11-36t cassette supply versatile gearing
  • Shimano hydraulic disc brakes put responsive, progressive braking control in your hands with a 180mm rotor up front and 160mm rotor in the back
  • Sturdy WTB Speed Disc double-walled rims are outfitted with WTB Wolverine Comp folding tires, which handle everything from loose to hardpacked trails
  • Oversize 1.5 in. tapered steerer on the fork pairs with the tapered head tube to ensure plenty of strength and handling precision

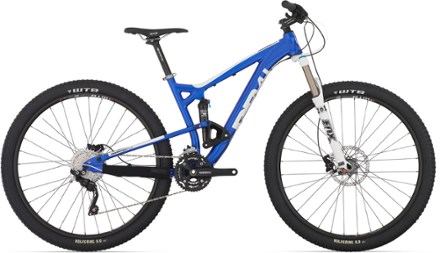

  • Specs on the Diamondback Sortie 2 29er full-suspension mountain bike are subject to change

Imported.

All bicycles sold at REI include a free warranty tune-up. New bikes go through a normal break-in period, after which readjustment is important for longevity and performance. Bring your new bike in to your local REI for its free tune-up within 20 hours of use or 6 months from purchase, whichever comes first. Contact your nearest REI bike shop to schedule this important service.

View all Diamondback Full-Suspension Mountain Bikes

REI membership

Specs

Best Use Mountain Biking
Frame 6061-T6 aluminum, butted
Bike Suspension Full Suspension
Fork Fox 32 Float CTD, 120mm travel with lockout
Rear Shock Fox Float CTD

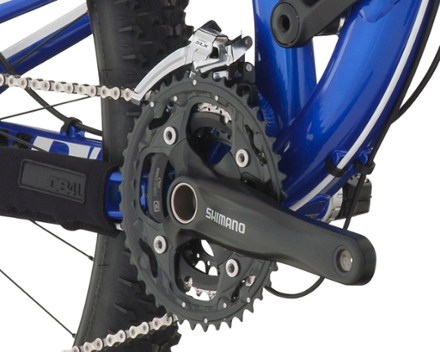

Crankset Shimano FCM522, 24/32/42
Bottom Bracket Shimano
Shifters Shimano SLX
Front Derailleur Shimano SLX
Rear Derailleur Shimano XT Shadow Plus
Rear Cogs Shimano SLX, 11-36, 10-speed
Number of Gears 30 gear(s)
Brakes Shimano Deore hydraulic disc
Brake Levers Shimano Deore
Rims WTB Speed Disc 29
Front Hub Alloy, 32h
Rear Hub Alloy, 32h
Wheel Size 29 inches
Tires WTB Wolverine 29 x 2.2
Handlebar Shape Riser Bar
Handlebar Easton EA30
Stem Easton EA50
Seat Post Easton EA50
Saddle WTB Vigo Comp
Pedals Unavailable
Headset FSA No.57
Chain Shimano SLX
Weight Unavailable
Bike Weight Bike weight is based on median size, as sold, or the average of two median sizes.
Gender Unisex
