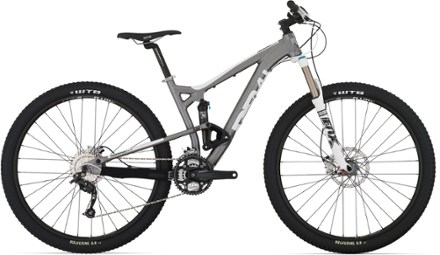

Diamondback  Sortie 1 29er Bike - 2014

This product is not available.

A high-performance bike with a Fox shock for aggressive trails, the Diamondback Sortie 1 29er combines the performance of big wheels with a responsive and efficient full-suspension platform.

Shop similar products

Features

  • 6061-T6 weapons-grade aluminum frame boasts an array of hydroformed and butted and formed tubes along with a tapered head tube to deliver a strong, stiff and responsive ride
  • The heart of the Sortie 1 is the Knuckle Box platform, which lowers the center of gravity of the suspension to optimize efficiency and effortlessly absorb small bumps
  • Fox 32 Float CTD 29 Air fork has 120mm of travel that can be easily tuned between the 3 CTD settings (Climb, Trail, Descend); 15mm thru axle helps stiffen the front
  • Fox Float CTD Air rear shock features Boost Valve technology along with the CTD ProPedal platform to efficiently absorb bumps with great protection from bottoming out
  • 3x9 Shimano drivetrain boasts SLX front and rear derailleurs guided by Alivio shifters; triple crank and 11-34t cassette supply versatile gearing
  • Shimano hydraulic disc brakes put responsive, progressive braking control in your hands with a 180mm rotor up front and 160mm rotor in the back
  • Sturdy WTB Speed Disc double-walled rims are outfitted with WTB Wolverine Comp folding tires, which handle everything from loose to hardpacked trails
  • Oversize 1.5 in. tapered steerer on the fork pairs with the tapered head tube to ensure plenty of strength and handling precision
  • NOTE: Specs and images are subject to change based on component availability

Imported.

This bike comes with Coast to Coast Support, which includes:
  • 1 year of free adjustments (see more below)
  • In-store bike assembly
  • Pickup in store or curbside
  • Bike experts available at 170+ bike shops
REI Co-op Members get more:
  • 20% off shop services
  • Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

View all Diamondback

Technical Specs

Best Use

Mountain Biking

Frame

6061-T6 aluminum, butted

Bike Suspension

Full Suspension

Fork

Fox 32 Float CTD, 120mm travel with lockout

Rear Shock

Fox Float CTD

Crankset

Shimano M430, 22/32/42

Bottom Bracket

Shimano BB-ES25

Shifters

Shimano Alivio

Front Derailleur

Shimano SLX

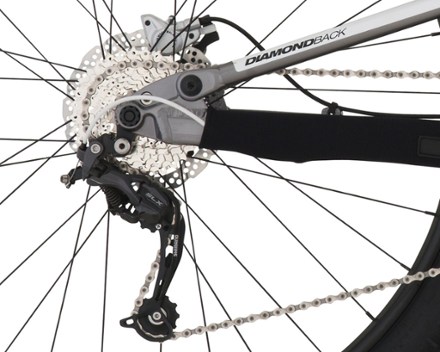

Rear Derailleur

Shimano SLX Shadow

Rear Cogs

Shimano HG61, 11-34t, 9-speed

Number of Gears

27 gear(s)

Brakes

Shimano M445 hydraulic disc

Brake Levers

Shimano M445

Rims

WTB Speed Disc 29

Front Hub

SL-7 Alloy, 32h

Rear Hub

SL-7 Alloy, 32h

Wheel Size

29 inches

Tires

WTB Wolverine, 29 x 2.2

Handlebar Shape

Riser Bar

Handlebar

DB Lazer Series

Stem

DB Lazer Series

Seat Post

DB Lazer Series Micro Adjust

Saddle

WTB Vigo Comp

Pedals

Unavailable

Headset

FSA No.57

Chain

Shimana HG54

Weight

Unavailable

Bike Weight

Bike weight is based on median size, as sold, or the average of two median sizes.

Gender

Unisex
