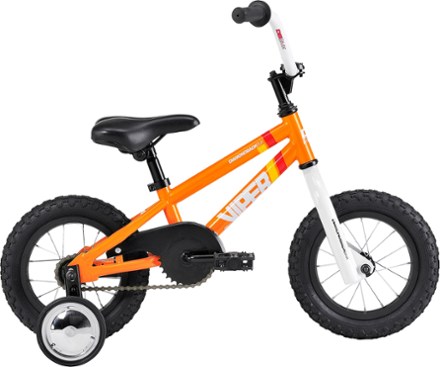

Diamondback Micro Viper 12" Boys' Bike
This product is not available.
With training wheels that you can take off once your rider learns to balance, the Diamondback Micro Viper 12 in. kids' bike offers a durable design for little ones eager to pedal on their own.
Shop similar productsKey Details
Wheel Size
12 inches
- Sturdy steel frame and fork are built to handle the rigors of riding
- Single-speed drivetrain with protective chainguard offers simplicity and low maintenance
- Rear coaster brake makes it easy for kids to stop; all they have to do is backpedal to engage the brake
- 12 in. wheels are outfitted with all-terrain Comp III tires for performance on and off the road
- The Diamondback Micro Viper 12 in. kids' bike includes a set of heavy-duty, removable training wheels to get new riders started on the basics of balance
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View all Diamondback Kids' Training Wheel Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Recreational Cycling |
|---|---|
| Frame | High-tensile steel |
| Bike Suspension | No Suspension |
| Fork | High-tensile steel |
| Crankset | 1-piece steel, 28t |
| Bottom Bracket | 9-piece Loose Ball |
| Brake Type | Coaster |
| Brakes | Coaster brake |
| Rims | Alloy |
| Front Hub | Steel, 16h |
| Rear Hub | Steel, 16h |
| Wheel Size | 12 inches |
| Tires | Comp III Style, 12 x 2.125 |
| Handlebar Shape | BMX Bar |
| Handlebar | Hi-Ten Steel 2-place |
| Stem | Steel 2-bolt quill |
| Seat Post | Alloy |
| Saddle | DB Jr Padded |
| Pedals | Resin platform |
| Headset | Threaded steel |
| Chain | KMC Z410 |
| Weight | 18 lbs. 12 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Boys' |
Diamondback Bikes (862825)
| 12 IN | |
|---|---|
| Effective Top Tube | 303 |
| Seat Tube Center-Top | 155 |
| Standover Height | 354 |
| Head Tube Length | 100 |
| Head Tube Angle (degrees) | 71 |
| Seat Tube Angle (degrees) | 71 |
| Wheelbase | 576 |
| Chainstay | 230 |
| Fork Offset | 33 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
