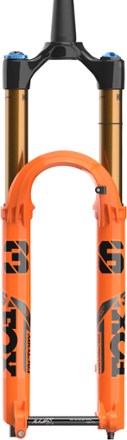

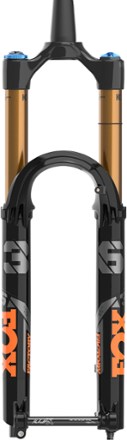

Fox Racing Shox 36 Factory GRIP2 Suspension Fork
$1,149.00
With a revamped crown, the all-mountain Fox Racing Shox 36 Factory suspension fork improves durability without compromising stiffness. A GRIP2 damper makes fine-tuning the suspension easy and precise.
This item pays for membership!
$114
10% Reward
on this and every eligible full-price item*
+
$30
Bonus Card
valid for 30 days after joining*
=
$144
Value
Start earning when you buy a $30 lifetime membership.
Keep shopping
- Updated crown design improves durability while maintaining stiffness, increasing steer-tube overlap at the crown-steerer unit and dropping 20 g of weight
- GRIP2 damper allows for external fine-tuning thanks to its patented Variable Valve Control (VVC) technology which provides high ride quality and precise adjustability
- GRIP2 system adjusts suspension performance with the twist of a knob—no disassembling and reassembling of the fork required
- Lower leg bypass channels allow for increased air volume, reducing the amount of additional unintended pressure ramping
- Lower leg bath oil circulates to the upper reaches of the legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its travel
- Lower leg bleeders allow for atmospheric pressure equalization, allowing for full travel while increasing responsiveness and sensitivity to small bumps
- Lower leg arch design shaves weight without compromising the stiffness or strength requirements that modern enduro and gravity-style riding demand
- Bolt-on floating Kabolt X axle is lightweight and increases torsional stiffness via a sleeveless, single-sided pinch-bolt design
- Genuine Kashima Coating on upper tubes reduces friction and increases wear life
Imported.
View all Fox Racing Shox Bike Suspension Forks| Best Use | Mountain Biking |
|---|---|
| Fork Spring Type | Air Spring |
| Fork Brake Type | Disc Brake |
| Fork Brake Mount | Post Mount |
| Max Rotor Diameter | 230 millimeters |
| Crown Race Diameter | 40 millimeters |
| Stanchion Diameter | 36 millimeters |
| Steerer Tube Diameter | 1.5 in. Tapered |
| Steerer Tube Length | 264 millimeters |
| Axle to Crown Length | 27.5/160 MM/15 X 110 MM/44 MM: 554 millimeters |
| Max Tire Width | 72 millimeters |
| Wheel Size | 27.5/160 MM/15 X 110 MM/44 MM: 27.5 inches |
| Fork Travel | 160 millimeters |
| Fork Offset | 44 millimeters |
| Front Axle | 15 x 110 mm Thru-Axle (Boost) |
| Weight | 27.5/160 MM/15 X 110 MM/44 MM: Unavailable grams |
| Material(s) | Kashima coated aluminum |
