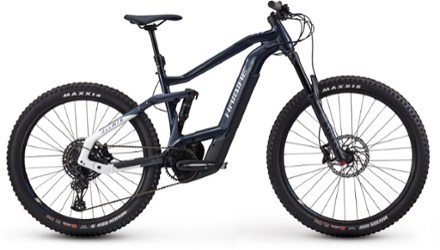

Haibike  ALLMTN 3 Electric Mountain Bike

This product is not available.

Take on every terrain from rambling trails to rugged steeps with the help of this Haibike ALLMTN 3 electric mountain bike. Its 650 Wh battery expands your eMTB experience to new levels.

Shop similar products

Features

  • Bike features a light, stiff 6061 aluminum frame with aggressively fun geometry; motor and battery are placed low for stability and easy handling
  • 29 in. front wheel offers precise and comfortable rollover behavior, while the 27.5 in. back wheel provides traction for the steepest uphill and downhill slopes
  • RockShox Yari RC fork with Boost dropouts and Deluxe RT rear shock with 160 mm front and 150 mm rear travel help keep things under control when trails get rowdy
  • Bosch Gen4 Performance CX 250W motor and powerful Powertube 625 Wh battery keep you ready for long-range trail sessions
  • Compatible with the Haibike Range Extender, an external battery that helps you cover more distance (not included)
  • Shimano MT420 4-piston hydraulic disc brakes with 203 mm front and 180 mm rear rotors provide serious stopping power and speed control with light lever feel
  • SRAM SX Eagle 12-speed shifting and the 11–50-tooth cassette give you ample gearing
  • NOTE: Specs and images are subject to change based on component availability

Imported.

This e-bike comes with Coast to Coast Support, which includes:
  • 1 year of free adjustments (see more below)
  • In-store bike assembly
  • Pickup in store or curbside
  • Bike experts available at 170+ bike shops
REI Co-op Members get more:
  • An additional year of free adjustments on e-bikes
  • 20% off shop services
  • Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

View all Haibike Full-Suspension Mountain Bikes

Technical Specs

Best Use

Mountain Biking

E-Bike Classification

Class 1: pedal assist up to 20 mph

Motor

Bosch Gen4 Performance CX 250W

Motor Type

Mid-Drive

Motor Torque (Nm)

75 Newton meters

Battery Type

Lithium Ion

Battery Capacity (Wh)

625 watt hours

Battery Removable

Yes

Charge Time (hrs)

50% in 2.5 hours; 100% in 6 hours

Pedal Assist Range

20-40 miles

Frame

6061 aluminum

Bike Suspension

Full Suspension

Fork

RockShox Yari RC Lockout, air, 160 mm travel, aluminum steerer tube 1-1/8 to 1-1/2 in. tapered, thru axle Boost

Fork Travel

160 millimeters

Rear Shock

RockShox Deluxe RT, air

Crankset

Haibike forged aluminum

Bottom Bracket

Bosch ISIS

Shifters

SRAM SX Eagle, trigger

Rear Derailleur

12-speed

Rear Cogs

SRAM PG1210, 11-50 teeth

Number of Gears

12 gear(s)

Brake Type

Hydraulic Disc Brake

Brakes

Shimano MT420, hydraulic disc, 4-piston, 203 mm/180 mm

Brake Levers

Shimano MT401 hydraulic

Rims

Alex MD30, eyed, double-walled rim, aluminum

Front Hub

Shimano MT400, 15 mm thru axle, Centerlock disc, 32h

Rear Hub

Shimano MT400, 12 mm thru axle, Cassette, Centerlock disc, 32h

Wheel Size

29 inches

27.5 inches

Tires

Front: Maxxis Minion DHF, 29 x 2.5 in.; rear: Maxxis Minion DHR II, 27.5 x 2.8 in.

Tire Width

2.5 inches

2.8 inches

Handlebar Shape

Riser Bar

Handlebar

Haibike Components TheBar ++ 780 mm

Stem

Haibike Components TheStem 2, A-head; bar bore: 31.8 mm

Seat Post

XLC remote dropper 31.6 mm

Dropper Post

Yes

Saddle

Selle Royale Vivo

Pedals

MTB Platform pedal aluminum

Headset

A-Head Tapered

Chain

SRAM SX Eagle

Weight

55 pounds

Bike Weight

Bike weight is based on median size, as sold, or the average of two median sizes.

Gender

Unisex

Additional Information

Size Chart

Haibike Bikes (214771)
SMLXL
Reach410430460490
Stack639643652666
Effective Top Tube567588620654
Seat Tube Center-Top410440470500
Standover Height790800815835
Head Tube Length115120130145
Head Tube Angle (degrees)65656565
Seat Tube Angle (degrees)76.376.376.376.3
Wheelbase1194121612501287
Chainstay455455455455

Sizing Notes

Measurements are stated in millimeters unless otherwise indicated.

How we measure bikes

  1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
  2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
  3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
  4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
  5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
  6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
  7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
  8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
  9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
  10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
  11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
  12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.

Reviews
8 reviews with an average rating of 4.4 out of 5 stars

Ratings Snapshot

Product Rating

7 out of 7 (100%) reviewers recommend this product

Review this Product

Adding a review will require a valid email for verification

Average Customer Ratings

Overall Fit Rating

Runs SmallRuns Large

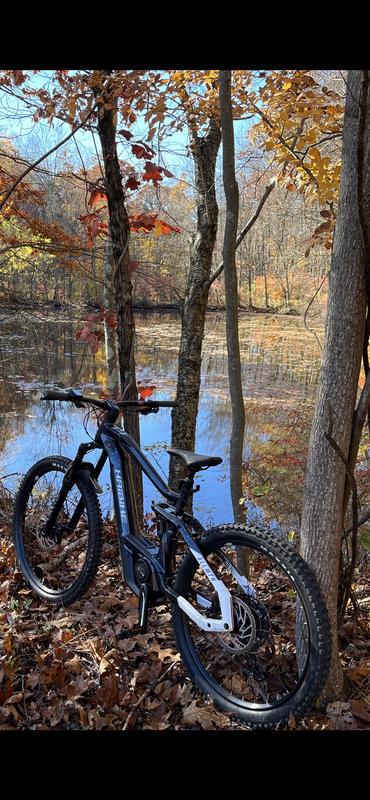

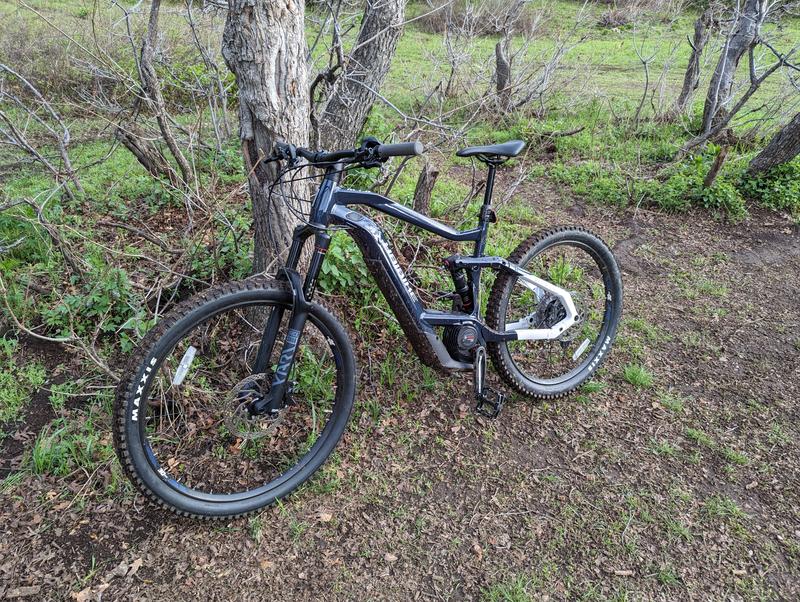

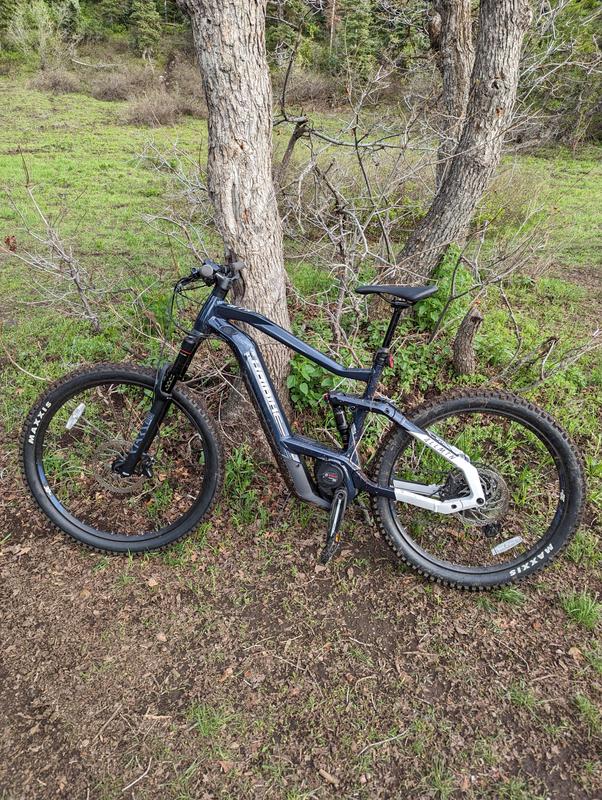

Customer Images
