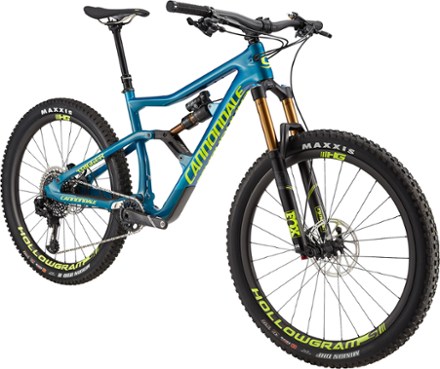

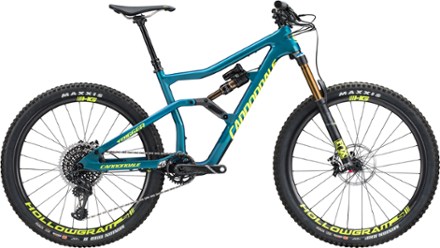

Cannondale Trigger Carbon 1 Bike - 2018
This product is not available.
Ready go all out and all in on big ups and big downs, the Cannondale Trigger Carbon 1 bike lives for big days in the mountains, where your sustained efforts will lead to sublime rewards.
Shop similar productsKey Details
Wheel Size
27.5 inches
Fork Travel
150 millimeters
Number of Gears
12 gear(s)
- Codeveloped with Fox, the Gemini system has 2 modes (Hustle and Flow), adding a whole new level of all-mountain capability to the performance of the Float X and DPS shocks
- Hustle mode shortens the travel and keeps you higher in the stroke for improved efficiency and snappy response on climbs and rolling terrain
- Flow mode drops your ride height and unleashes full Fox travel when its time to cook
- Asymmetric Integration (Ai) creates short, 420mm stays for climb-crushing traction and agility, while preserving tire clearance and frame stiffness
- Ai even-dish build ensures a stiff, strong rear wheel
- Short stays, steep seat angle, long front center and slack head angle let you climb like a goat, change direction like a hummingbird and charge through downs like a grizzly
- Leveraged single-pivot design places a link between the swingarm and shock for optimal suspension response; it keeps the suspension active when braking
- Included Race Face 31.6mm Turbine dropper seatpost has a patented hybrid design that couples mechanical and hydraulic locking technologies inspired by MTB disc brakes
- Pedals not included
- Closeout
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View all Cannondale Full-Suspension Mountain Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Frame | Trigger, 145mm travel, full BallisTec Carbon, carbon shock link, Ai offset drivetrain, ISCG05, PF30, flat mount brake, tapered head tube |
| Mountain Bike Style | Trail |
| Bike Suspension | Full Suspension |
| Fork | Fox Factory Float 34, 27.5, 150mm, Fit 4, 3-pos Adj., Kashima coating, 110x15, tapered steerer, 44mm offset |
| Fork Travel | 150 millimeters |
| Rear Shock | Fox Factory Float X EVOL with Gemini remote-actuated dual-mode air-spring system, Flow Mode - 145mm / Hustle Mode - 115mm, Kashima coating, 3-Pos lever |
| Crankset | Truvativ Descendant Carbon Eagle, BB30 with custom Ai offset, 30t |
| Bottom Bracket | Cannondale alloy PressFit30 |
| Shifters | SRAM X01 Eagle 12-speed, trigger |
| Rear Derailleur | SRAM XX1 Eagle 12-speed |
| Rear Cogs | SRAM XG1295 Eagle 10-50t, 12-speed |
| Number of Gears | 12 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | SRAM Guide RSC hydraulic disc, Centerline rotors 180/180mm |
| Brake Levers | SRAM Guide RSC with contact point adjust, cartridge bearing, reach adjust |
| Rims | Cannondale HollowGram 30 carbon, 30mm inner, tubeless-ready 27.5" |
| Front Hub | HollowGram 30 - 110x15 thru |
| Rear Hub | 148x12 thru rear with Ai offset, Maxle Ultimate |
| Wheel Size | 27.5 inches |
| Tires | Maxxis Minion DHF 27.5x2.3" front, DHR II 2.3" rear, 3C Compound, EXO puncture protection, folding , Tubeless Ready |
| Tire Width | 2.3 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale C1 carbon riser, 15mm rise, 4° up, 9° back, 31.8, 780mm |
| Stem | Cannondale C1, 3D forged 6061 alloy, 1-1/8", 31.8, 0°, 45mm |
| Seat Post | RaceFace Turbine dropper, Internal Routing, 31.6, travel - 150mm |
| Dropper Post | Yes |
| Saddle | Fabric Scoop Shallow Race with titanium rails |
| Pedals | Not Included |
| Headset | Integrated, 1-1/8 to 1.5", sealed angular contact bearings |
| Chain | SRAM X01 Eagle 12-speed w/ PowerLink |
| Weight | 27 lbs. 9.6 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
Cannondale Bikes (173892)
| M | L | |
|---|---|---|
| Reach | 43.1 | 45.3 |
| Stack | 59.5 | 60.6 |
| Effective Top Tube | 60.2 | 62.7 |
| Seat Tube Center-Top | 43.0 | 46.0 |
| Standover Height | 76.1 | 76.7 |
| Head Tube Length | 11.5 | 12.7 |
| Head Tube Angle (degrees) | 66° | 66° |
| Seat Tube Angle (degrees) | 69.5° | 69.5° |
| Bottom Bracket Height | 34.5 | 34.5 |
| Wheelbase | 115.3 | 117.9 |
| Chainstay | 42.0 | 42.0 |
| Fork Offset | 4.4 | 4.4 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
