Cannondale Quick CX 3 Bike - 2019
This product is not available.

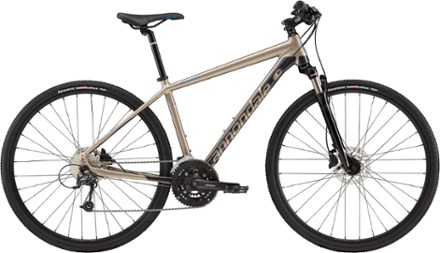

Tackle dirt one day and conquer the pavement the next on the Cannondale Quick CX 3 bike. With Shimano components and 27 gears, this bike is built to get you where you want to go, with no limits.
Shop similar productsKey Details
- With consistent lower stack and longer reach measurements, the Quick CX 3 has a fit well-suited to multi-surface riding and high-performance commuting
- 50mm travel front suspension absorbs washboard and bumps, while 1-1/2 to 1-1/8 in. tapered head tube keeps steering precise and confident
- SAVE micro suspension seatstays and chainstays work with a smaller 27.2mm seatpost
- Heads-up riding position and ergonomic saddle and grips increase comfort and control
- Big 38c multi-surface tires are fast and grippy on dirt and pavement
- Full rack and fender mounts let you customize your Quick CX for the type of riding you're into (rack and fenders not included)
- Quick CX is superlight but offers heavyweight performance, on-road or off
- Closeout
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Recreational Cycling |
|---|---|
| Frame | Quick CX, SmartForm C2 alloy, SAVE, 1-1/2" to 1-1/8" tapered head tube |
| Step-Through | No |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour NCX with lockout, 50mm, 1-1/2"- 1-1/8" tapered steerer |
| Fork Travel | 50 millimeters |
| Crankset | Shimano Acera, 48/36/26 |
| Bottom Bracket | FSA Cartridge |
| Shifters | Shimano Alivio, 3x9 |
| Front Derailleur | Shimano Acera 31.8 clamp |
| Rear Derailleur | Shimano Deore |
| Rear Cogs | Shimano Alivio 11-32, 9-speed |
| Number of Gears | 27 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano M315 hydraulic disc, 160/160mm rotors |
| Brake Levers | Shimano M315 hydraulic disc |
| Rims | DC 3.0, double-wall, eyelet, 32h |
| Front Hub | Alloy disc, sealed, loose ball bearings, QR, 32h |
| Rear Hub | Alloy disc, sealed, loose ball bearings, QR, 32h |
| Wheel Size | 700c |
| Tires | Panaracer Comet Hardpack, 700x38c |
| Tire Width | 38 millimeters |
| Handlebar Shape | Flat Bar |
| Handlebar | Cannondale C3, 6061 double-butted, 12mm rise, 680mm |
| Stem | Cannondale C3, 6061 alloy, 31.8, 12° |
| Seat Post | Cannondale C3, 6061 alloy, 27.2 x 350mm |
| Saddle | Cannondale Quick CX Ergo |
| Pedals | Cannondale Fitness Reinforced Composite |
| Headset | VP Si 1-1/2"- 1-1/8" |
| Chain | KMC Z99, 9-speed |
| Weight | 27 lbs. 3.2 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 38.9/15.3 | 39.8/15.7 | 40.7/16.0 | 41.5/16.3 |
| Stack | 58.4/23.0 | 58.4/23.0 59.9/23.6 | 61.6/24.2 | 63.2/24.9 |
| Effective Top Tube | 56.7/22.3 | 58.1/22.9 | 59.5/23.4 | 60.8/23.9 |
| Seat Tube Center-Top | 40.0/15.7 | 45.0/17.7 | 50.0/19.7 | 55.0/21.7 |
| Standover Height | 71.9/28.3 | 75.7/29.8 | 79.5/31.3 | 83.3/32.8 |
| Head Tube Length | 10.7/4.2 | 12.3/4.8 | 14.1/5.6 | 14.1/5.6 15.8/6.2 |
| Head Tube Angle (degrees) | 69.5° | 69.5° | 69.5° | 69.5° |
| Seat Tube Angle (degrees) | 73.0° | 73.0° | 73.0° | 73.0° |
| Bottom Bracket Height | 29.3/11.5 | 29.3/11.5 | 29.3/11.5 | 29.3/11.5 |
| Wheelbase | 107.8/42.5 | 109.3/43.0 | 110.9/43.6 | 112.3/44.2 |
| Chainstay | 45.0/17.7 | 45.0/17.7 | 45.0/17.7 | 45.0/17.7 |
| Fork Offset | 4.5/1.8 | 4.5/1.8 | 4.5/1.8 | 4.5/1.8 |
Sizing Notes
Measurements are stated in centimeter/inch format unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
