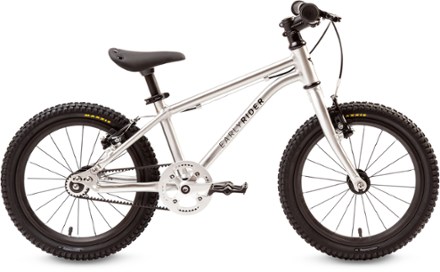

Early Rider Limited  Belter 16" Trail Kids' Bike

This product is not available.

The award-winning design of the Early Rider Limited Belter 16 in. Trail kids' bike shaves weight to make it significantly lighter than most 16 in. bikes, so your young cyclist can shred with ease.

Shop similar products

Features

  • Lightweight, hand-brushed and lacquered aluminum frame, high-PSI tires, cartridge bearing hubs and full bearing pedals all add up to low rolling resistance and easy riding
  • Unlike a chain, the durable and low-maintenance belt drive won't stretch or get gunked up by dirt and grease
  • High-performance Ritchey components include a forged aluminum stem, flat handlebar and seat clamp
  • Aluminum sprockets, 105mm crankset and Early Rider custom pedals
  • 16 in. wheels with high thread-count Maxxis Maxx Daddy tires
  • Short-reach Tektro front and rear V brake levers on the handlebar help prepare kids for grownup cycling
  • Seat height adjusts 47-57cm
  • Suggested for ages 3.5-6 yrs.
  • NOTE: Specs and images are subject to change based on component availability

Imported.

This bike comes with Coast to Coast Support, which includes:
  • 1 year of free adjustments (see more below)
  • In-store bike assembly
  • Pickup in store or curbside
  • Bike experts available at 170+ bike shops
REI Co-op Members get more:
  • 20% off shop services
  • Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

View all Early Rider Limited Kids' Bikes

Technical Specs

Best Use

Mountain Biking

Mountain Bike Style

Trail

Frame

Aluminum

Fork

Hand brushed, 6061 Aluminum, forged drop outs

Bike Suspension

No Suspension

Crankset

CNC'd 7075 aluminum 46T front sprocket, cold forged 7075 aluminium 105mm cranks, hollow 7075 aluminum splined axle

Bottom Bracket

External threaded sealed cartridge

Rear Cogs

CNC'd 7075 alumni 22T

Number of Gears

1

Brake Type

Rim

Brakes

Tektro BX1V

Brake Levers

Tektro JL350, extra short reach

Rims

Early Rider 16-in. 20H aluminum, double walled

Front Hub

Aluminum, full cartridge

Rear Hub

Aluminium 4 bearing cassette hub

Wheel Size

16 inches

Tires

Maxxis Maxx Daddy

Tire Width

1.75 inches

Handlebar Shape

Riser Bar

Handlebar

Ritchey OS Double Butted, AL6061, 480mm

Stem

Ritchey IS Forged AL6061 Stem, 60mm Reach

Seat Post

Aluminum

Saddle

Black, faux nubuck, riveted saddle

Pedals

Early Rider, low profile 1 piece alloy platform, sealed bearings

Chain

Gates Powergrip belt, 800-8m

Weight

11 lbs. 14.4 oz.

Bike Weight

Bike weight is based on median size, as sold, or the average of two median sizes.

Gender

Kids'

Belt Drive

Yes

Size Chart

Early Rider Limited Bikes (151121)
16 IN
Effective Top Tube382.5
Seat Tube Center-Top229
Standover Height450
Head Tube Length90
Head Tube Angle (degrees)69.5
Seat Tube Angle (degrees)71
Bottom Bracket Height0
Wheelbase681
Chainstay263

Sizing Notes

Measurements are state in Millimeters.

How we measure bikes

  1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
  2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
  3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
  4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
  5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
  6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
  7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
  8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
  9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
  10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
  11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
  12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
