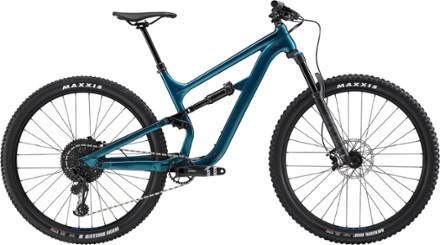

Cannondale Habit 4 AL 29" Bike - 2019
This product is not available.
Designed for a diverse range of riders and the varied terrain they ride, the 2019 Cannondale Habit 4 AL 29" bike is eminently capable in any and every situation.
Shop similar productsKey Details
- From week-long backcountry adventures with friends to solo singletrack jams after work, Habit delivers performance and fun for every rider
- The suspension linkage arrangement for each size is tailored so each rider gets suspension performance while braking and improved overall pedaling efficiency
- Proportional response optimizes the ride for more control, more efficiency and flat-out more fun
- Asymmetric Integration allows the Habit to have 435mm chainstays that are nimble and capable in corners while still having loads of tire clearance and stiffness
- Geometry has a 66° head tube angle and a steep seat tube angle to put riders in the right position as trails head up and gets saddle out of the way when it's down time
- TranzX dropper seatpost equips air pressure actuation, freely and easily adapting your seat position according to the terrain requirements
- DirectLine cable routing means no rattle and no fishing around for cables
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Mountain Bike Style | Trail |
| Frame | All-New Habit, 130mm travel, SmartForm C1 alloy, Proportional Response tuned, Ai offset drivetrain, ISCG05, Post mount brake, tapered head tube |
| Bike Suspension | Full Suspension |
| Fork | Fox Float Rhythm 34, 130mm, Grip Damper, Sweep-Adj, 15x110, tapered steerer, 51mm offset |
| Fork Travel | 130 millimeters |
| Rear Shock | Fox Float Performance DPS EVOL, 130mm, 3-position adjustable |
| Crankset | Truvativ Stylo 6K, 32T |
| Bottom Bracket | SRAM GXP |
| Shifters | SRAM NX Eagle, 12-speed |
| Rear Derailleur | SRAM NX Eagle, 12-speed |
| Rear Cogs | SRAM PG-1230, NX Eagle, 11-50, 12-speed |
| Number of Gears | 12 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | SRAM Guide T hydraulic disc, 180/180mm Centerline rotors |
| Brake Levers | SRAM Guide T hydraulic disc |
| Rims | WTB ST i25 TCS 2.0, 32h, tubeless ready |
| Front Hub | Formula 15x110 |
| Rear Hub | 12x148 rear with/ HG driver |
| Wheel Size | 29 inches |
| Tires | Maxxis Minion DHF 29 x 2.5 in. WT front, High Roller II 2.3 in. rear, Dual compound, EXO puncture protection, tubeless ready |
| Tire Width | 2.5 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale C3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
| Stem | Cannondale C3, 3D Forged 6061 Alloy, 1-1/8 in., 31.8, 0 |
| Seat Post | TranzX dropper, internal routing, 31.6, 100mm (S), 125mm (M-XL) |
| Saddle | Fabric Scoop Shallow Sport, steel rails |
| Pedals | Sold separately |
| Headset | Integrated, 1-1/8 to 1.5 in., sealed angular contact bearings |
| Chain | SRAM NX Eagle, 12-speed |
| Dropper Post | Yes |
| Weight | 33 lbs. 1.6 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 40.0 | 43.0 | 46.0 | 49.0 |
| Stack | 60.7 | 61.6 | 62.5 | 63.4 |
| Effective Top Tube | 57.3 | 60.6 | 63.9 | 67.1 |
| Seat Tube Center-Top | 40 | 44 | 48 | 52 |
| Standover Height | 72 | 75 | 77 | 78 |
| Head Tube Length | 10.5 | 11.5 | 12.5 | 13.5 |
| Head Tube Angle (degrees) | 66.0° | 66.0° | 66.0° | 66.0° |
| Seat Tube Angle (degrees) | 66.3° | 66.3° | 66.3° | 66.3° |
| Bottom Bracket Height | 33.9 | 33.9 | 33.9 | 33.9 |
| Wheelbase | 114.2 | 117.6 | 121 | 124.4 |
| Chainstay | 43.5 | 43.5 | 43.5 | 43.5 |
| Fork Offset | 5.1 | 5.1 | 5.1 | 5.1 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
