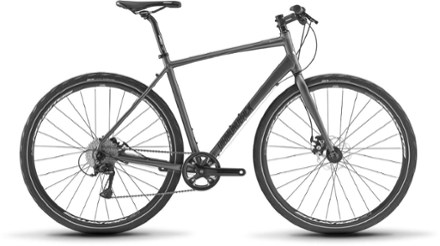

Diamondback Haanjo 1 Bike - 2018
This product is not available.
Take your commute from average to awesome with the worry-free durability and riding comfort of the Diamondback Haanjo 1 bike. Mounts make it easy to add optional racks and haul gear on your next ride.
Shop similar productsKey Details
- 6061-T6 aluminum alloy frame with Endurance Geometry offers worry-free durability and all-day riding comfort
- Gravel Disc steel fork has fender and low-rider rack mounts, so you can stay dry and bring your gear along on your next ride (rack and fenders not included)
- Tektro Aries mechanical disc brakes and wide tires deliver confident and reliable urban performance
- Shimano Acera 1x9 drivetrain provides simple and ultra-reliable shifting
- Flat handlebar gives an upright riding position
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Road Cycling |
|---|---|
| Frame | Fully butted 6061-T6 alloy |
| Fork | DB Steel Gravel Disc, 1-1/8" steerer tube with fender and low rider mounts |
| Bike Suspension | No Suspension |
| Crankset | Forged alloy arm, 38t single ring with alloy chainguard |
| Bottom Bracket | Steel cartridge |
| Shifters | Shimano Acera M3000, 9-speed |
| Rear Derailleur | Shimano Acera RD-T3000, 9d-speed |
| Rear Cogs | Shimano HG201, 9-speed cassette, 11-36t |
| Number of Gears | 9 gear(s) |
| Brake Type | Mechanical Disc Brake |
| Brakes | Tektro Aries mechanical disc, with 160/140mm front/rear rotors |
| Brake Levers | Tektro 2 Finger alloy |
| Rims | Diamondback Equation, 28h, double-wall |
| Front Hub | 28h Alloy QR |
| Rear Hub | 28h Alloy QR, cassette |
| Wheel Size | 700c |
| Tires | Diamondback Interval Wire Bead, 700x38c, Reflective Sidewall, 60TPI |
| Tire Width | 38 millimeters |
| Handlebar Shape | Flat Bar |
| Handlebar | DB Flat Bar, 640mm wide, 31.8mm bar bore |
| Stem | DB X-Durance, 3D forged, +/-7 deg. rise, 31.8mm bar bore |
| Seat Post | DB X-Durance, Alloy 27.2mm |
| Saddle | DB Eldorado |
| Pedals | DB4L Alloy platform |
| Headset | FSA IS-3/ No.11 integrated style |
| Chain | KMC Z99, 9-speed |
| Weight | 24 lbs. 15 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| 50 CM | 53 CM | 56 CM | 59 CM | |
|---|---|---|---|---|
| Height Range | 5'4"-5'7" | 5'7"-5'10" | 5'10"-6'1" | 6'1"-6'4" |
| Reach | 373.0 | 369.0 | 371.0 | 375.0 |
| Stack | 549.0 | 576.0 | 599.0 | 627.0 |
| Effective Top Tube | 525.0 | 540.0 | 560.0 | 580.0 |
| Seat Tube Center-Top | 475.0 | 505.0 | 535.0 | 565.0 |
| Standover Height | 753.0 | 774.0 | 806.0 | 833.0 |
| Head Tube Length | 130.0 | 155.0 | 175.0 | 200.0 |
| Head Tube Angle (degrees) | 69.0 | 70.0 | 71.0 | 72.0 |
| Seat Tube Angle (degrees) | 74.5 | 73.0 | 72.5 | 72.0 |
| Wheelbase | 1044.0 | 1041.0 | 1041.0 | 1044.0 |
| Chainstay | 440.0 | 440.0 | 440.0 | 440.0 |
| Fork Offset | 50.0 | 50.0 | 50.0 | 50.0 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
