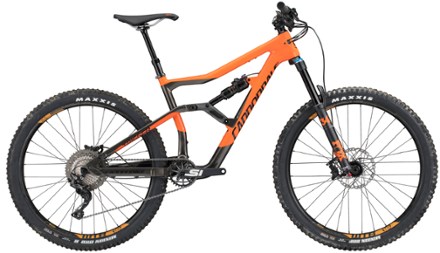

Cannondale Trigger Carbon AL 3 27.5 Bike - 2018
This product is not available.
If you love everything from XC to enduro, you don't need a quiver of bikes, you only need the 2-in-1 Cannondale Trigger Carbon/AL 3. With a Fox 34 fork and customizable geometry, it can do it all.
Shop similar productsKey Details
- Fox Float Performance DPS EVOL shock morphs from efficient short travel to plush long travel at the flip of a switch; Flow mode: 145mm of travel; Hustle mode: 115mm of travel
- Change geometry on the fly: go steep and nimble in Elevate mode, or low and stable in Flow mode
- Fox 34 Float Performance fork offers 150mm of smooth, responsive travel and precise handling; easy-access lockout and rebound controls are glove-friendly
- 27.5 in. wheels provide the ideal blend of snappy acceleration, nimble handling and rollover momentum
- NOTE: Specs and images are subject to change based on component availability
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Mountain Bike Style | All-mountain |
| Frame | BallisTec Carbon front triangle, SmartForm C1 alloy swingarm |
| Bike Suspension | Full Suspension |
| Fork | Fox Float 34 Performance, 27.5, 150mm, 110x15QR, tapered steerer, 44mm offset |
| Fork Travel | 150 |
| Rear Shock | Fox Float Performance DPS EVOL with Gemini remote-actuated dual-mode air-spring system |
| Bottom Bracket | Cannondale Alloy Pressfit 30 |
| Shifters | Shimano SLX, 11-speed |
| Rear Derailleur | Shimano XT, 11-speed Shadow Plus |
| Rear Cogs | Shimano XT, 11-speed, 11-46 |
| Number of Gears | 11 |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano SLX hydro disc, 180/180mm rotors |
| Brake Levers | Shimano SLX hydro disc |
| Rims | WTB Frequency Race i29, 29mm inner, TCS tubeless-ready 27.5", 32h |
| Front Hub | Formula with HG driver - 15x110 thru-axle |
| Rear Hub | 148x12 thru-axle with Ai offset |
| Wheel Size | 27.5 inches |
| Tires | Maxxis Minion 27.5x2.3" DHF front, DHR II rear, Dual Compound, folding, tubeless-ready |
| Tire Width | 2.3 inches |
| Handlebar Shape | Flat Bar |
| Handlebar | Cannondale C3 Riser, 6061 alloy, 15mm rise, 4 deg. up, 9 deg. back, 31.8, 780mm |
| Stem | Unavailable |
| Seat Post | Cannondale C3, 6061 Alloy, 1-1/8", 31.8, 0 , 45mm |
| Saddle | Fabric Radius Scoop |
| Pedals | Sold separately |
| Headset | Integrated, 1-1/8 to 1.5", sealed angular contact bearings |
| Chain | Shimano HG601, 11-speed |
| Weight | 30 lbs. 13.8 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5’3”- 5’6” | 5’6” - 5’9 | 5’9” -6’0” | 6’0 - 6’3” |
| Reach | 39.9 | 42.7 | 45.0 | 47.4 |
| Stack | 56.5 | 57.6 | 58.8 | 59.9 |
| Effective Top Tube | 56.6 | 59.8 | 62.4 | 65.2 |
| Seat Tube Center-Top | 43.2 | 45.7 | 48.3 | 50.8 |
| Standover Height | 73.1 | 74.2 | 75.4 | 76.6 |
| Head Tube Length | 9.7 | 11.0 | 12.2 | 13.4 |
| Head Tube Angle (degrees) | 68 | 68 | 68 | 68 |
| Seat Tube Angle (degrees) | 70.1 | 70.5 | 70.7 | 71 |
| Bottom Bracket Height | 35.1 | 35.1 | 35.1 | 35.1 |
| Wheelbase | 111.8 | 115.1 | 117.9 | 120.8 |
| Chainstay | 43.8 | 43.8 | 43.8 | 43.8 |
| Fork Offset | 5 | 5 | 5 | 5 |
Sizing Notes
Measurements are stated in centimeters.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
