GHOST Framr AL 6 27.5 Bike - 2017
This product is not available.

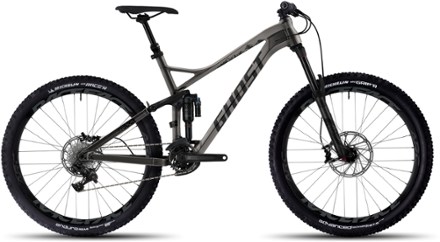

Serving up 160mm of trail-leveling travel in the rear and 170mm up front with enduro-inspired geometry, the GHOST Framr 6 AL bike delivers an optimal combination of durability, speed and control.
Shop similar productsKey Details
- Stiff and strong aluminum alloy frame, slack head tube angle, steep seat tube angle and superlight rear triangle offer excellent control on descents and efficient climbing
- 27.5 in. wheels offer an optimal mix of control, speed and maneuverability
- Disconnect Brake Mount connects the rear brake caliper directly to the X12 thru-axle for perfect alignment with the rotor; braking forces go into the axle instead of the frame

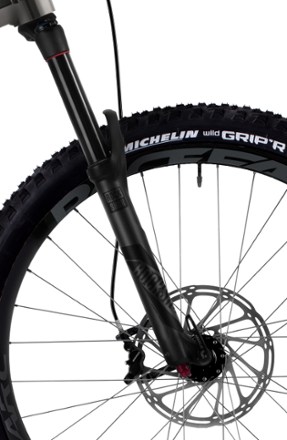

- RockShox Yari RC Solo Air fork features 170mm of trail-dominating tunable travel and Boost (110mm) hub spacing
- RockShox Monarch Plus RC3 Debon Air rear shock provides 160mm of tunable travel
- SRAM GX 1x11 drivetrain provides a solid gear range while eliminating dropped chains
- SRAM Guide R dual-piston hydraulic disc brakes and 200mm front / 180mm rear rotors for powerful, reliable stopping power
- Kind Shock LEV Integra dropper seatpost provides infinite adjustment on the fly and ensures a custom drop length for each rider (drop length dependent on frame size)
- Internal cable routing keeps the frame and cockpit area clean and free of cable clutter
- Race Face ARC 30 rims laced to GHOST Light thru-axle hubs are strong, light, stiff and tough enough for all-mountain and park use
- Oversized, ultralight, and super-stiff 35mm diameter, 800mm wide handlebar and stem
- REI is proud to be the exclusive U.S. retailer of GHOST brand bikes
- Pedals sold separately
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
Best Use | Mountain Biking |
---|---|
Mountain Bike Style | All-mountain |
Frame | Alloy |
Bike Suspension | Full Suspension |
Fork | RockShox Yari RC Solo Air 170mm Boost |
Fork Travel | 170 millimeters |
Rear Shock | RockShox Monarch Plus RC3 Debon Air 160mm |
Crankset | Race Face Aeffect 32 |
Bottom Bracket | Race Face |
Shifters | SRAM GX Trigger |
Rear Derailleur | SRAM GX1 11-Speed |
Rear Cogs | SRAM PG-1130 11-42 |
Number of Gears | 11 |
Brake Type | Hydraulic Disc Brake |
Brakes | SRAM Guide R 200/180mm |
Brake Levers | SRAM Guide R |
Rims | Race Face ARC 30 |
Front Hub | GHOST Light 15mm Boost |
Rear Hub | GHOST Light 12mm |
Wheel Size | 27.5 inches |
Tires | Front: Michelin Wild Grip R2 27.5x2.35 AR / rear: Wild RaceR Enduro 27.5x2.35 |
Tire Width | 2.35 inches |
Handlebar Shape | Riser Bar |
Handlebar | GHOST Rizer light 780mm 35mm |
Stem | GHOST AS-M04 35 mm |
Seat Post | Kind Shock LEV Integra 31.6mm adjustable seatpost |
Saddle | SDG Fly |
Pedals | Sold separately |
Headset | Acros |
Chain | SRAM PC 1130 |
Dropper Post | Yes |
Weight | 31 lbs. 8 oz. |
Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
Gender | Unisex |
S | M | L | XL | |
---|---|---|---|---|
Height Range | 5'1"-5'6" | 5'5"-5'11" | 5'10"-6'3" | 6'1-6'7" |
Reach | 400 | 423 | 445 | 458 |
Stack | 596 | 606 | 615 | 625 |
Effective Top Tube | 583 | 609 | 635 | 652 |
Seat Tube Center-Top | 440 | 460 | 480 | 500 |
Standover Height | 744 | 760 | 778 | 793 |
Head Tube Length | 110 | 120 | 130 | 140 |
Head Tube Angle (degrees) | 66.5 | 66.5 | 66.5 | 66.5 |
Seat Tube Angle (degrees) | 73 | 73 | 73 | 73 |
Wheelbase | 1140 | 1167 | 1193 | 1209 |
Chainstay | 430 | 430 | 430 | 430 |
Sizing Notes
All measurements are stated in millimeters or degrees unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
Review this Product
Adding a review will require a valid email for verification
Nice Bike
I bought this bike about 2 months ago, upgrading from a hard tail trail bike and I am generally very pleased with the purchase, I am an intermediate rider hitting some fairly rocky and rooty trails up and down about 1100 feet here in Alabama at Oak Mountain State park. This bike has been a great upgrade for me making the rough terrain much more enjoyable. The bike is very intuitive and stable on the downhill runs. It comes with a drop seat which I would not have thought to purchase but has turned out to be a really nice feature. Drive chain stability and reliability are excellent. Shifting is smooth and handles last second shifts in the middle of the action without any issues. On my old bike I used to drop my chain 2 or 3 times during a typical ride but the front chain guard on the Framr AL 6 makes it seemingly impossible to drop the chain during the ride. My last bike was a 29er and I was surprised that I have not missed the extra tire size. Suspension gives a nice smooth ride, but the rear suspension was tough to get up to compression level needed. I weigh about 210 with gear and had to pump it to 240 to get in desired range. It took me a few rides to get used to the set up of the bike with the front fork sitting further much out in front of me than my trail bike. I had to just get used to keeping my weight forward on technical climbs so I wouldn't fall off the back of the bike. If you are making a similar switch, be warned. The bike feels a little heavier than I expected and the color is much darker than the pictures on the website, but overall I am very happy with the bike.
