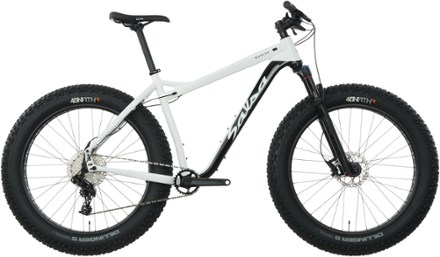

Salsa Mukluk NX1 SUS Fat Bike - 2017
This product is not available.
One bike that can do it all, the Salsa Mukluk NX1 SUS fat bike provides effective float and traction over sand, mud, rock and snow so you can explore more terrain any time of the year.
Shop similar productsKey Details
Wheel Size
26 inches
Number of Gears
11
- 6066-T6 aluminum tubeset with Salsa Fatbike geometry and 197 x 12mm symmetrical rear spacing accommodates 5.0 in. tires
- 1x and 2x drivetrain compatible; full-length internal housing cable routing
- Braze-ons for mounting multiple bottle cages; rear rack compatible
- 100mm threaded bottom bracket allows a wide range of crank choices; replaceable derailleur hanger; tapered headtube
- Alternator dropout version 2.0 allows for a short chainstay length; dropper post compatible
- RockShox Bluto fork features crown adjustable damping and an infinitely tunable Solo Air spring
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Salsa Mukluk Product LineView all Salsa- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Mountain Bike Style | Trail |
| Frame | 6066-T6 Aluminum |
| Bike Suspension | Front Suspension |
| Fork | RockShox Bluto |
| Crankset | RaceFace Aeffect, 28 |
| Bottom Bracket | RaceFace |
| Shifters | SRAM NX1 |
| Rear Derailleur | SRAM NX1 |
| Rear Cogs | Sunrace 11-42 |
| Number of Gears | 11 |
| Brake Type | Hydraulic Disc Brake |
| Brakes | SRAM Level, G2CS 160mm |
| Brake Levers | SRAM Level |
| Rims | Surly MOBD |
| Front Hub | Salsa |
| Rear Hub | Salsa |
| Wheel Size | 26 inches |
| Tires | 45NRTH Dillinger 5, 60 tpi |
| Tire Width | 5.0 inches |
| Handlebar Shape | Flat Bar |
| Handlebar | Salsa Rustler 3 |
| Stem | Salsa Guide |
| Seat Post | Zoom 31.6 |
| Saddle | WTB Volt Comp 142 |
| Pedals | Sold Separately |
| Headset | Cane Creek 15 |
| Chain | KMC X11 |
| Weight | 33 lbs. 10 oz. |
| Gender | Unisex |
Salsa Bikes (111130)
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Height Range | 5'2" - 5'6" | 5'5" - 5'9" | 5'8" - 6'0" | 5'11" - 6'3" | 6'2" - Up |
| Reach | 15.4 | 16.1 | 16.9 | 17.6 | 18.3 |
| Stack | 23.3 | 23.7 | 24.1 | 24.4 | 24.8 |
| Effective Top Tube | 22.6 | 23.4 | 24.2 | 25.0 | 25.9 |
| Seat Tube Center-Top | 16 | 16 | 18 | 20 | 22 |
| Standover Height | 26.9 | 27.6 | 28.3 | 29.8 | 30.5 |
| Head Tube Length | 3.9 | 4.3 | 4.7 | 5.1 | 5.5 |
| Head Tube Angle (degrees) | 69° | 69° | 69° | 69° | 69° |
| Seat Tube Angle (degrees) | 73° | 73° | 73° | 73° | 73° |
| Wheelbase | 42.7 | 43.6 | 44.4 | 45.3 | 46.1 |
| Chainstay | 440-457mm | 440-457mm | 440-457mm | 440-457mm | 440-457mm |
| Fork Offset | 2 | 2 | 2 | 2 | 2 |
Sizing Notes
Measurements are stated in inches unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
