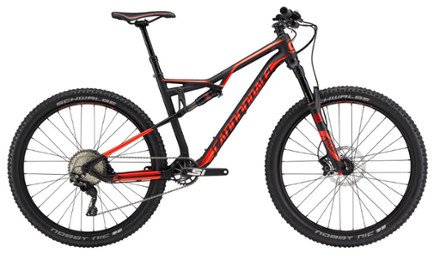

Cannondale Habit Carbon/Alloy 3 27.5 Bike - 2017
This product is not available.
The Cannondale Habit Carbon / Alloy 3 27.5 bike can do it all, and does it all well. This MTB fun machine delivers all-mountain capability along with XC efficiency.
Shop similar productsKey Details
- Proprietary BallisTec carbon frame delivers high strength and stiffness; this construction is the ideal blend of advanced materials and advanced carbon engineering and design
- Zero-pivot seatstays have a precise carbon layup that flexes vertically while remaining extremely stiff laterally and torsionally
- This seatstay engineering enhances suspension performance, saves weight and increases lateral stiffness versus bearing pivot rear stays
- With a RockShox Pike RC suspension fork with 120mm travel and Fox Float DPS rear shock with 120mm travel, it's playful, agile and capable on varying terrain
- Shimano 1x11 drivetrain
- Schwalbe Nobby Nic Performance tires, 27.5 x 2.35 up front and 27.5 x 2.25 in the rear, offer plenty of playfulness
- Pedals sold separately
- NOTE: Specs and images are subject to change based on component availability
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Mountain Bike Style | Trail |
| Frame | BallisTec Carbon, SmartForm C1 Alloy swingarm |
| Bike Suspension | Full Suspension |
| Fork | RockShox Pike RC, 120mm, tapered steerer, Charger Damper, Solo Air, 15mm Maxle Ultimate |
| Fork Travel | 120 millimeters |
| Rear Shock | Fox Float DPS, 3-position lever, 120mm travel |
| Crankset | Cannondale Si, BB30, SpideRing 30T |
| Bottom Bracket | Cannondale Alloy PressFit30 |
| Shifters | Shimano SLX, 11-speed |
| Rear Derailleur | Shimano XT, 11-speed |
| Rear Cogs | Shimano SLX, 11-42, 11-speed |
| Number of Gears | 11 |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano Deore M615 hydraulic disc, 180/160mm rotors |
| Brake Levers | Shimano Deore M615 |
| Rims | WTB STP i23 TCS, 32h, tubeless-ready |
| Rear Hub | Formula with HG driver 142x12 |
| Wheel Size | 27.5 inches |
| Tires | Schwalbe Nobby Nic Performance 27.5x2.35 front, 2.25 rear, TwinSkin, tubeless ready |
| Tire Width | 2.25 inches 2.35 inches |
| Handlebar Shape | Flat Bar |
| Handlebar | Cannondale C3 riser, Alloy, 4 deg. upsweep, 9 deg. backsweep, 760x15mm |
| Stem | Cannondale C3, 6061 Alloy, 31.8mm, 5 deg. |
| Seat Post | TransX Dropper Post, 31.6, 120mm drop, internal routing |
| Saddle | Cannondale Stage 3 |
| Pedals | Sold separately |
| Headset | 1.5 Tang, 4 tapered steerer tube |
| Chain | Shimano CN-HG601, 11-speed |
| Dropper Post | Yes |
| Weight | 29 lbs. 6.5 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5’3”- 5’6” | 5’6” - 5’9” | 5’9” - 6’0” | 6’0 - 6’3” |
| Reach | 39.9 | 42.7 | 45.0 | 47.7 |
| Stack | 57 | 58.2 | 59.4 | 60.5 |
| Effective Top Tube | 56.2 | 59.4 | 62 | 65 |
| Seat Tube Center-Top | 40 | 44 | 48 | 52 |
| Standover Height | 72.2 | 74.1 | 74.3 | 75.3 |
| Head Tube Length | 9.7 | 11 | 12.2 | 13.4 |
| Head Tube Angle (degrees) | 68 | 68 | 68 | 68 |
| Seat Tube Angle (degrees) | 72.2 | 72.2 | 72.2 | 72.2 |
| Bottom Bracket Height | 33.4 | 33.4 | 33.4 | 33.4 |
| Wheelbase | 110.1 | 113.4 | 116.1 | 119.3 |
| Chainstay | 42.9 | 42.9 | 42.9 | 42.9 |
| Fork Offset | 5 | 5 | 5 | 5 |
Sizing Notes
Measurements are stated in centimeters.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
