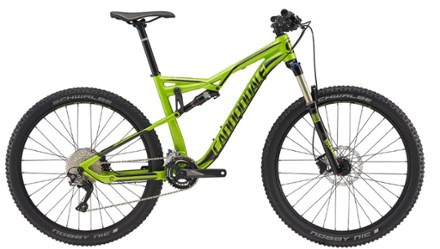

Cannondale Habit Alloy 5 27.5" Bike - 2017
This product is not available.
With all-mountain capability and XC efficiency, the Cannondale Habit Alloy 5 bike is the perfect 'go anywhere and ride anything' full-suspension mountain machine thanks to its balanced geometry.
Shop similar productsKey Details
- Geometry blends an upright position for full trail visibility with aggressive angles so you can quickly react to changing topography
- Main frame and rear are made of SmartFormed aluminum alloy for light, responsive handling; carbon shock link saves 100 grams over the former alloy version
- Wide bars, a short stem, big brake rotors and wide, trail-gripping rims and tires are ready to hit any trail
- Zero-pivot seatstays have a precise carbon layup that flexes vertically while staying extremely stiff laterally and torsionally to boost suspension performance and save weight
- RockShox Recon Gold is a capable all-around 27.5 in. fork with easily adjustable air suspension and TurnKey damping featuring patented blowoff design
- The 120mm of travel, 68° head angle, custom 50mm fork offset, short chainstays and low-slung chassis offer the perfect blend of speed and capability
- Shimano SLX drivetrain provides smooth shifting performance with 2x11-speed, while hydraulic Shimano disc brakes allow great braking power
- Solid wheelset with Schwalbe performance tires guarantee that acceleration forces of any direction transfer directly to the trail
- NOTE: Specs and images are subject to change based on component availability
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Mountain Bike Style | All-mountain |
| Frame | SmartForm C1 Alloy |
| Bike Suspension | Full Suspension |
| Fork | RockShox Recon Gold RL Air, 120mm, tapered steerer, 15mm Maxle Lite, Poploc handlebar-mounted remote |
| Fork Travel | 120 millimeters |
| Rear Shock | Fox Float DPS, 3-position lever, 120mm travel |
| Crankset | FSA Comet MegaExo 36/26 11-speed |
| Bottom Bracket | FSA MegaExo |
| Shifters | Shimano SLX, 2x11 |
| Front Derailleur | Shimano SLX 11-speed |
| Rear Derailleur | Shimano SLX, 11-speed |
| Rear Cogs | SunRace 11-speed, 11-42 |
| Number of Gears | 22 |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano M447 hydraulic disc, 180/160mm |
| Brake Levers | Shimano M447 hydraulic disc |
| Rims | WTB STP i23 TCS, 32 hole, tubeless ready |
| Front Hub | Formula 100x15 |
| Rear Hub | Formula with HG driver 142x12 |
| Wheel Size | 27.5 inches |
| Tires | Schwalbe Nobby Nic Performance Folding 27.5x2.35 front, 2.25 rear |
| Tire Width | 2.35/2.25 inches |
| Handlebar Shape | Flat Bar |
| Handlebar | Cannondale C3 riser, alloy, 4 degree upsweep, 9 degree backsweep, 760x15mm |
| Stem | Cannondale C4, 6061 alloy, 1-1/8", 31.8, 5 deg. |
| Seat Post | Cannondale C3, 6061 alloy, 31.6x350mm (S, M)/400mm (L, XL) |
| Saddle | Cannondale Stage 3 |
| Pedals | Sold separately |
| Headset | Tange 1.5 for tapered steer tubes |
| Chain | KMC X11, 11-speed |
| Weight | 31 lbs. 9.3 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5’3”- 5’6” | 5’6” - 5’9” | 5’9” - 6’0” | 6’0 - 6’3” |
| Reach | 39.9 | 42.7 | 45.0 | 47.7 |
| Stack | 57.0 | 58.2 | 59.4 | 60.5 |
| Effective Top Tube | 56.2 | 59.4 | 62 | 65 |
| Seat Tube Center-Top | 40 | 44 | 48 | 52 |
| Standover Height | 72.2 | 74.1 | 74.3 | 75.3 |
| Head Tube Length | 9.7 | 11 | 12.2 | 13.4 |
| Head Tube Angle (degrees) | 68 | 68 | 68 | 68 |
| Seat Tube Angle (degrees) | 72.2 | 72.2 | 72.2 | 72.2 |
| Bottom Bracket Height | 33.4 | 33.4 | 33.4 | 33.4 |
| Wheelbase | 110.1 | 113.4 | 116.1 | 119.3 |
| Chainstay | 42.9 | 42.9 | 42.9 | 42.9 |
| Fork Offset | 5 | 5 | 5 | 5 |
Sizing Notes
Measurements are stated in inches.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
