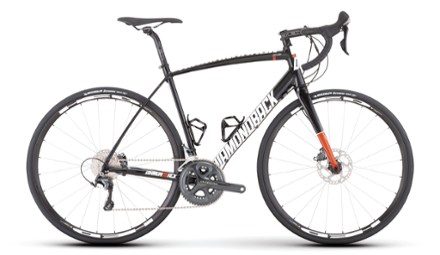

Diamondback  Century 2 Disc Ultegra Bike - 2017

This product is not available.

To put it simply, the Diamondback Century 2 is at home on the road. It's designed to be ridden all day long, and the revamped aluminum frame features Enhanced Performance geometry for an upright ride.

Shop similar products

Features

  • With a slightly taller head tube than a road race bike, it helps you maintain a more upright, less fatiguing body position
  • Shimano Ultegra 11speed drivetrain, hydraulic brakes and 28c Michelin tires on HED wheels complement the bike's platform and reinforce its performance
  • Shimano FC-6800 compact crankset with 50/34 chainrings is paired with a 11-32 cassette for a wide range of gearing for easy climbs and speed on the flats
  • DBR AAMP disc carbon road fork with tapered alloy steerer
  • Shimano hydraulic road disc brakes, 160/140mm rotors
  • HED Flanders C2+ disc wheels are equipped with Michelin Dynamic Sport tires to supply good all-around performance
  • NOTE: Specs and images are subject to change based on component availability

Imported.

This bike comes with Coast to Coast Support, which includes:
  • 1 year of free adjustments (see more below)
  • In-store bike assembly
  • Pickup in store or curbside
  • Bike experts available at 170+ bike shops
REI Co-op Members get more:
  • 20% off shop services
  • Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

View all Diamondback

Technical Specs

Best Use

Road Cycling

Frame

7005 aluminum

Fork

Carbon

Bike Suspension

No Suspension

Crankset

Shimano Ultegra FC-6800 Compact, 50/34t

Bottom Bracket

Shimano outboard bearing

Shifters

Shimano ST-RS685, Dual Control 2x11 speed

Front Derailleur

Shimano Ultegra FD-6800, 31.8mm band clamp

Rear Derailleur

Shimano Ultegra RD-6800, 11-speed

Rear Cogs

Shimano 105 CS-5800 Cassette, 11-speed, 11-32t

Number of Gears

22

Brake Type

Hydraulic Disc Brake

Brakes

Shimano BR-RS805 Flat Mount hydraulic disc, with 160mm front/140mm rear rotors

Brake Levers

Shimano ST-RS685

Rims

HED Flanders C2+ Disc, 24h

Front Hub

24h alloy, sealed cartridge, HighLow flange, 12mm thru-axle with center-lock disc mount

Rear Hub

24h alloy, sealed cartridge, HighLow flange, 142x12mm thru-axle, with center-lock disc mount, cassette

Wheel Size

700c

Tires

Michelin Dynamic Sport, 700x28c

Tire Width

28 millimeters

Handlebar Shape

Drop Bar

Handlebar

HED Tour Flat Top drop bar, 31.8 bar bore

Stem

HED Tour Stem, +/-7 Rise, 31.8mm bar bore

Seat Post

HED Tour, 27.2mm

Saddle

DBR Performance Road

Pedals

Wellgo Alloy Road

Headset

FSA NO.42, sealed cartridge for tapered head tube

Chain

KMC X11L, 11 Speed

Weight

Unavailable

Bike Weight

Bike weight is based on median size, as sold, or the average of two median sizes.

Gender

Unisex

Size Chart

Diamondback Bikes (108757)
52 cm54 cm56 cm58 cm60 cm
Height Range5'4" to 5'7"4"5'7" to 5'95'9" to 6'0"6'0" to 6'3"6'3" to 6'5"
Reach375372378388392
Stack558572591609627
Effective Top Tube535545560575590
Seat Tube Center-Top490510530550570
Standover Height767788807830851
Head Tube Length145160180200220
Head Tube Angle (degrees)7272.8737373
Seat Tube Angle (degrees)7273.25737372.5
Bottom Bracket Height276276278.5278.5285.5
Wheelbase99198799710131022
Chainstay415415415415415
Fork Offset47.547.547.547.547.5

Sizing Notes

Bike measurements are stated in millimeters.

How we measure bikes

  1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
  2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
  3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
  4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
  5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
  6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
  7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
  8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
  9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
  10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
  11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
  12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
