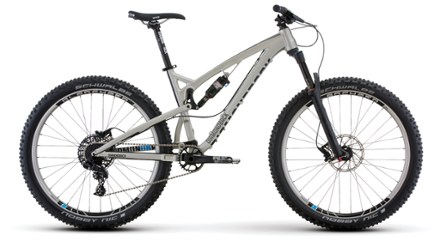

Diamondback Catch 1 27.5+ Bike - 2017
This product is not available.
On the leading edge of mountain bike technology, the Diamondback Catch 1 27.5+ bike uses the Level Link rear suspension platform and 130mm of travel front and rear to make your day on the trail.
Shop similar productsKey Details
- Aluminum frame features formed tubes for reliable durability and light weight; geometry is in line with the adventurous focus, featuring a slack-but-not-too-slack front end
- SRAM NX 1x11 drivetrain and Level hydraulic brakes guide you through the gears and stop you when you need to
- 27.5+ Blanchard wheels with wide tires
- NOTE: Specs and images are subject to change based on component availability
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Mountain Bike Style | Trail |
| Frame | Aluminum |
| Bike Suspension | Full Suspension |
| Fork | RockShox Yari RC, 130mm travel, with rebound and compression damping; 15mm thru-axle |
| Fork Travel | 130 millimeters |
| Rear Shock | RockShox Monarch R DebonAir, 200x57mm |
| Crankset | SRAM NX 1x, with/ X-Sync 30t chainring |
| Bottom Bracket | SRAM GXP |
| Shifters | SRAM NX 11-speed X-Actuation trigger |
| Rear Derailleur | SRAM NX X-Horizon, 11-speed |
| Rear Cogs | SRAM PG1130, 11-speed, 11-42t |
| Number of Gears | 11 |
| Brake Type | Hydraulic Disc Brake |
| Brakes | SRAM Level hydraulic disc with 180mm front/rear centerline rotors |
| Brake Levers | SRAM Level hydraulic levers with tooled reach adjust |
| Rims | Diamondback Blanchard 32R, tubeless-compatible, 32h |
| Front Hub | 32h Alloy, Boost 110x15mm thru-axle, sealed cartridge bearing; CNC disc mount |
| Rear Hub | 32h Alloy, Boost 148x12mm thru-axle, 4 sealed cartridge bearing, with XD cassette body |
| Wheel Size | 27.5+ inches |
| Tires | Schwalbe Nobby Nic 27.5x2.8" Performance, folding |
| Tire Width | 2.8 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | DB35 Alloy, 760mm wide, 15mm rise, 35mm bar bore |
| Stem | DB35 Alloy, 50mm reach, 35mm bar bore |
| Seat Post | DB Alloy micro-adjust, 31.6mm |
| Saddle | WTB Volt Comp |
| Pedals | DB4L Alloy platform with replaceable pins |
| Headset | FSA No-57E taper 1.5 /1-1/8" standard cups, sealed cartridge |
| Chain | KMC X11EL, 11-speed |
| Weight | 33 lbs. 6 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5'4" - 5'7" | 5'7" - 5'10" | 5'10" - 6'3" | 6'3" - 6'6" |
| Reach | 402 | 427 | 449 | 472 |
| Stack | 599 | 599 | 608 | 617 |
| Effective Top Tube | 585 | 610 | 635 | 660 |
| Seat Tube Center-Top | 394 | 432 | 483 | 533 |
| Standover Height | 746 | 740 | 746 | 745 |
| Head Tube Length | 100 | 100 | 110 | 120 |
| Head Tube Angle (degrees) | 68 | 68 | 68 | 68 |
| Seat Tube Angle (degrees) | 73 | 73 | 73 | 73 |
| Bottom Bracket Height | 342 | 342 | 342 | 342 |
| Wheelbase | 1134 | 1159 | 1185 | 1211 |
| Chainstay | 446 | 446 | 446 | 446 |
| Fork Offset | 51 | 51 | 51 | 51 |
Sizing Notes
Bike measurements are stated in millimeters.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
Review this Product
Adding a review will require a valid email for verification
Level Link and plus tires make you a rock star!
I've had this bike for almost a year now and can say it opened up a whole new world of trail riding for me. The Catch climbs like my hardtail and puts a smile on my face while smashing technical and fast flowy decents. Plus tires provide amazing grip and allow me to experiment with lower tire pressures for even greater traction and control. I've ridden Diamondback mountain bikes since 2012 and can guarantee you will not find a better bang for your buck. Any warranty and or parts issues I have had were quickly resolved through the DB website.
No replacement parts for level link suspension
I bought this bike about a year go and the bushing on the level link suspension already seem to be failing. I can't find replacement parts any where and bike shops do little about where to buy them...
