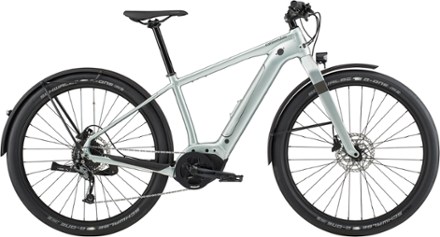

Cannondale Canvas Neo 2 Electric Bike
This product is not available.
Built to turn rush hour into "what-a-rush!" hour, the Cannondale Canvas Neo 2 electric bike offers comfort and control with an upright but sporty riding position and big, grippy, bump-erasing tires.
Shop similar productsKey Details
- Durable, reliable Bosch Active Line Plus 250W drive unit and removable 400Wh battery give you the speed you need and the juice to go the distance with a range of up to 60 mi.
- Premium SmartForm C1 alloy frame is paired with a carbon fiber fork and can accommodate a dual battery (not included)
- Shimano 9-speed drivetrain and hydraulic disc brakes offer crisp shifting and reliable stopping power
- Integrated pannier rack and fenders, bright front and rear lights and weather-sealed battery cover are ready to roll into daily duty
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
Best Use | Urban Cycling |
---|---|
E-Bike Classification | Class 1: pedal assist up to 20 mph |
Motor | Bosch Active Line Plus 250W |
Motor Type | Mid-Drive |
Motor Torque (Nm) | 50 |
Battery Type | Lithium Ion |
Battery Capacity (Wh) | 400 watt hours |
Battery Removable | Yes |
Charge Time (hrs) | 4.5 hours |
Pedal Assist Range | 60 miles |
Frame | SmartForm C2 alloy |
Step-Through | No |
Bike Suspension | No Suspension |
Fork | BallisTec carbon, 1-1/8 to 1-1/2 in. tapered steerer, OutFront 55mm offset |
Crankset | Bosch Gen3, 38t |
Shifters | Shimano Acera, 9-speed |
Rear Derailleur | Shimano Alivio |
Rear Cogs | Shimano HG200, 11-36, 9-speed |
Number of Gears | 9 |
Brake Type | Hydraulic Disc Brake |
Brakes | Shimano MT200 hydraulic disc, 180/180mm RT10 rotors |
Brake Levers | Shimano MT200 hydraulic disc |
Rims | WTB STX i29 TCS, 32h, tubeless ready |
Front Hub | Shimano MT400 15 x 110 |
Rear Hub | Shimano MT400 12 x 148 |
Wheel Size | 29 inches |
Tires | Schwalbe G-One Speed Performance, 29 x 2.35 in., RaceGuard |
Tire Width | 2.35 inches |
Handlebar Shape | Riser Bar |
Handlebar | Cannondale 3 Riser, 6061 alloy, 15mm rise, 8° sweep, 4° rise, 740mm |
Stem | Cannondale 3, 3D forged 6061 alloy, 1-1/8 in., 31.8, 0 degree |
Seat Post | 6061 alloy, 31.6 x 350mm |
Saddle | Cannondale Ergo Urban |
Pedals | Cannondale Fitness |
Headset | Integrated, 1-1/8 to 1-1/2 in., sealed angular contact bearings (Integrated steer stop size small only) |
Chain | Shimano HG93, 9-speed |
Weight | 47 lbs. 12.8 oz. |
Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
Gender | Unisex |
S | M | L | XL | |
---|---|---|---|---|
Reach | 39.4 | 43.1 | 45.2 | 47.5 |
Stack | 62.8 | 62.8 | 63.5 | 64.3 |
Effective Top Tube | 58.0 | 61.7 | 64.0 | 66.5 |
Seat Tube Center-Top | 38.0 | 43.5 | 48.5 | 53.5 |
Standover Height | 74.6 | 77.5 | 81.3 | 84.7 |
Head Tube Length | 12.8 | 12.8 | 13.6 | 14.4 |
Head Tube Angle (degrees) | 68.0° | 68.0° | 68.0° | 68.0° |
Seat Tube Angle (degrees) | 73.5° | 73.5° | 73.5° | 73.5° |
Bottom Bracket Height | 31.6 | 31.9 | 31.6 | 31.6 |
Wheelbase | 116.0 | 119.7 | 122.0 | 124.6 |
Chainstay | 47.9 | 47.9 | 47.9 | 47.9 |
Fork Offset | 5.5 | 5.5 | 5.5 | 5.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
