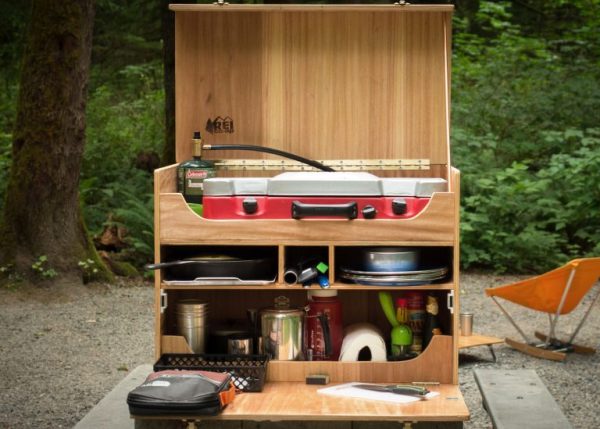

How to Build Your Own Camp Kitchen Chuck Box

Rate this story:

An organized kitchen is the secret to a happy camping trip. That said, it’s not always easy to keep all of your camp cooking gear and ingredients readily accessible when you’re at the campsite.

Let’s face it; tossing everything randomly in cardboard boxes will only get you so far. This tutorial provides instructions for a do-it-yourself wooden camp kitchen box that’ll solve your culinary organizational quandaries once and for all. Plus, it looks good and is pretty much guaranteed to impress the heck out of your camping buddies.

Supplies needed:

  • 4' x 8' sheet of ½" plywood
  • 4 sets of hinges
  • 2 latches
  • 2 magnetic closures
  • Wood glue
  • Screws
  • Lid prop (recycled tent pole section)

Tools needed:

  • Screwdriver
  • Tape measures
  • Drill with small bit
  • Pencils
  • Construction square
  • Skill saw (many hardware stores offer cutting services)
  • Small handsaw
  • Safety glasses

Camp Kitchen

Step 1

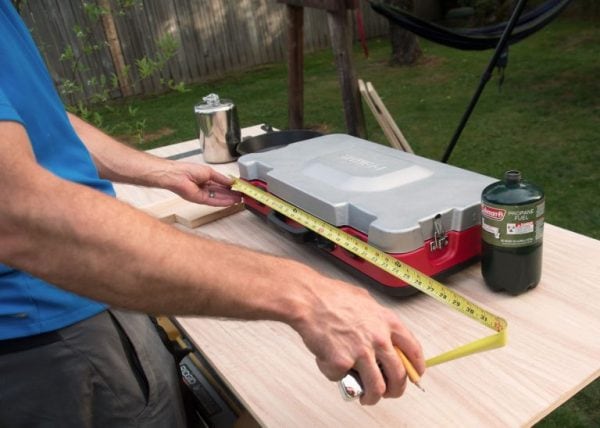

Measure your gear. First, measure your stove with the fuel bottle attached. This will give you the overall length and width of your box. Make sure to add some space in order to allow the stove lid to open and to hold any items you might want to store next to your stove. Measure the height of any gear you want to store upright (maximum height) in order to help determine shelf spacing.

Camp Kitchen

Camp Kitchen

Step 2

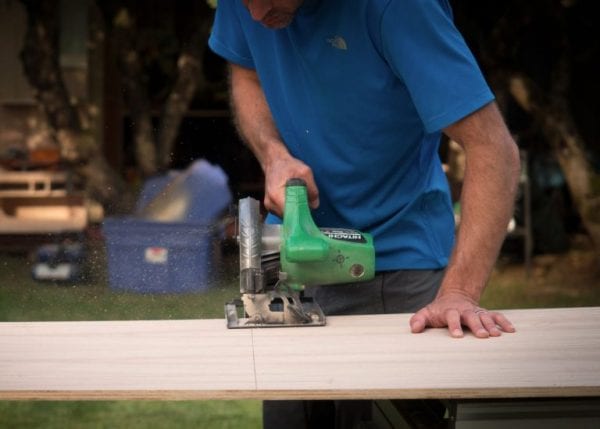

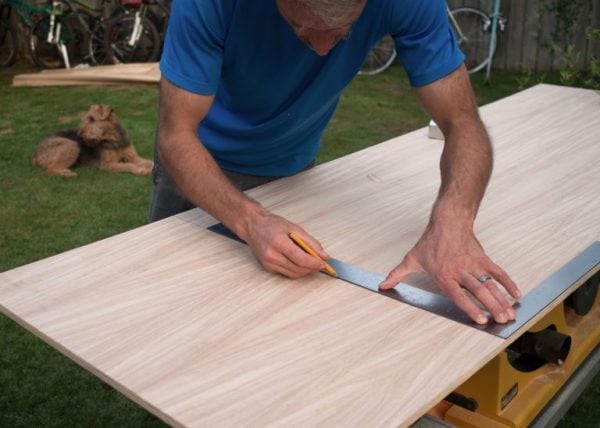

Lay out all your measurements onto the sheet of plywood. Try to make the most out of the sheet. Line up all similar cuts and start cutting. If you don’t own a saw, most hardware stores offer cutting services when you purchase wood. If you plan to have the hardware store do the cutting, you’ll want to provide a cut list and a diagram to help the hardware store determine the best way to cut.

Camp Kitchen

Step 3

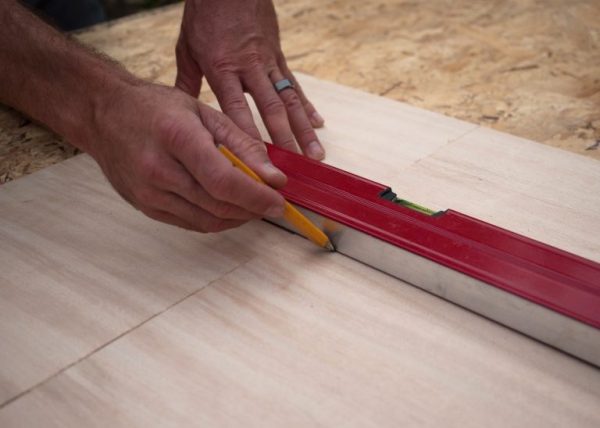

Line up the back and side pieces and mark your shelf height location with a pencil; this will make it easier to screw in your shelves after the outer box is built.

Camp Kitchen

Step 4

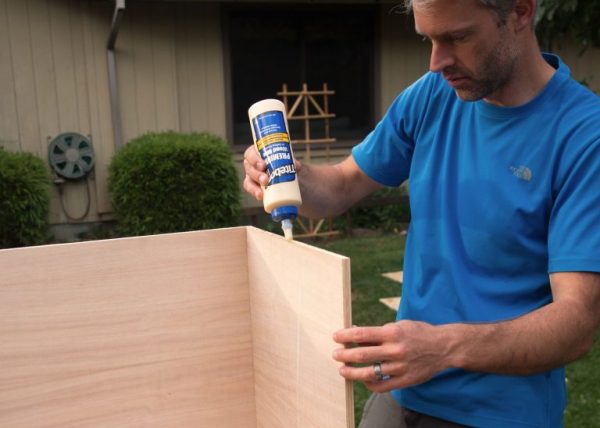

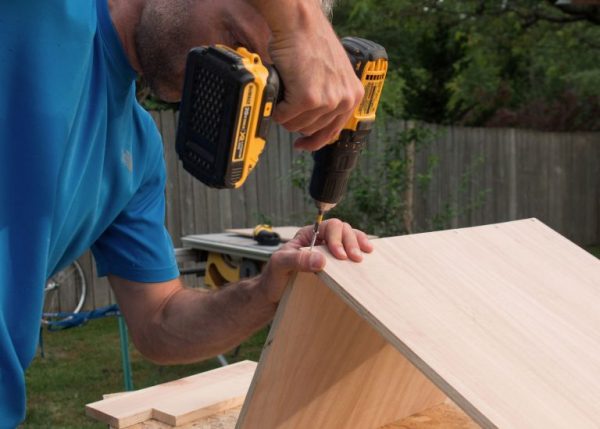

Start by assembling the sides and back of the box. If you are not using self-drilling screws, you should pre-drill holes for best results. Screw and glue all seams.

Camp Kitchen

Step 5

Attach the bottom of box, screw and glue all seams.

Camp Kitchen

Step 6

Pre-assemble the shelves outside of the box. Make sure to square the top and bottom, as this will make them easier to install. If you’re adding a top shelf face board, install it now. Screw and glue all seams.

Camp Kitchen

Step 7

Install the shelves using the pre-marked lines. Screw and glue all seams.

Camp Kitchen

Step 8

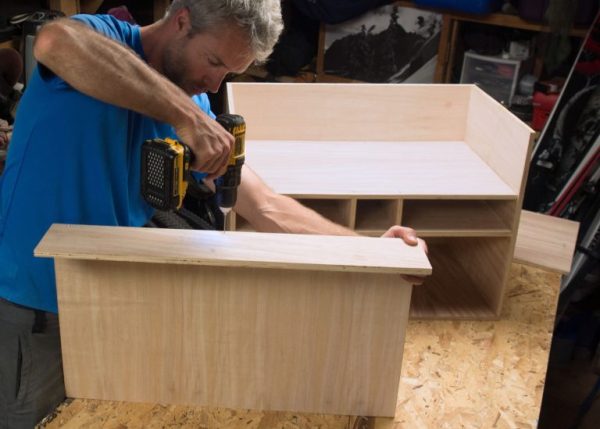

Attach the top/lid to the short face board. Screw and glue all seams.

Camp Kitchen

Step 9

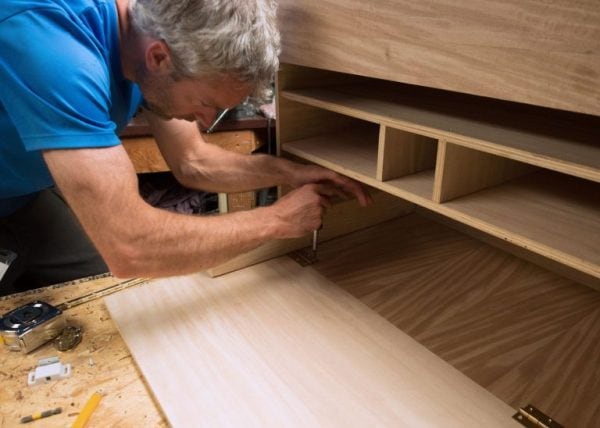

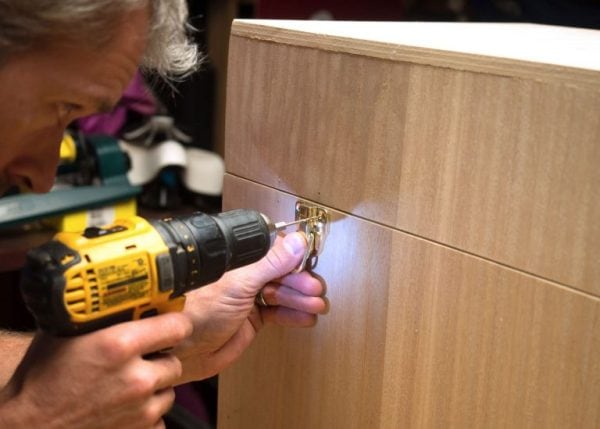

Attaches hinges to top/lid and front face board.

Camp Kitchen

Step 10

Install remaining hardware (latches, magnets, etc.). Locations will vary based on the design and dimensions of your camp kitchen chuck box.

Camp Kitchen

Step 11

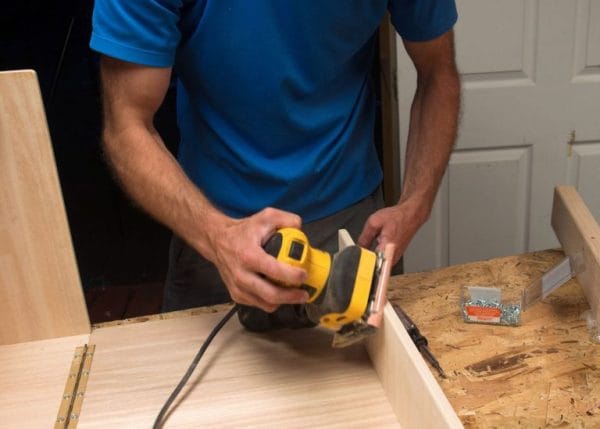

Sand all edges round and stain/seal plywood.

Camp Kitchen

Step 12

Post pictures of your completed camp kitchen to your favorite social media sites and then go camping!

Download the camp kitchen box supplies list and cut sheet and get started: Camp Kitchen Cut Sheet.

For more camping tips, check out our camping checklist.
