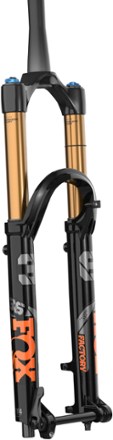

Fox Racing Shox 36 Factory FIT4 Suspension Fork
With a revamped crown, the all-mountain Fox Racing Shox 36 Factory suspension fork improves durability without compromising stiffness. Adjust damping to suit the trail with its 3-position FIT4 system.

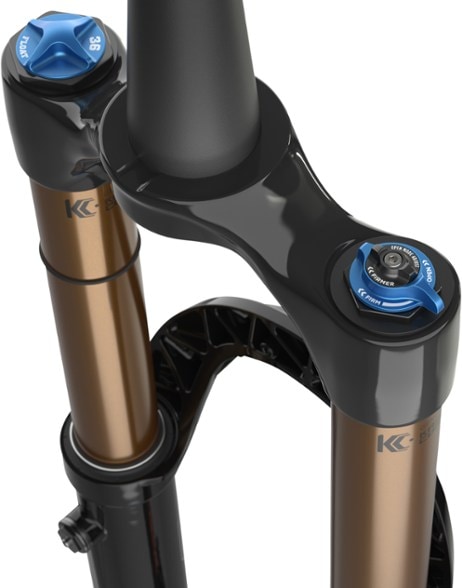

- Updated crown design improves durability while maintaining stiffness, increasing steer-tube overlap at the crown-steerer unit and dropping 20 g of weight
- FIT4 closed cartridge damping system provides 3 on-the-fly compression damping positions—open, medium and firm—to adapt to varying trail conditions
- Factory Series forks feature an additional 22 clicks of low-speed compression adjust in the open mode, allowing riders to fine-tune their exact damping preferences

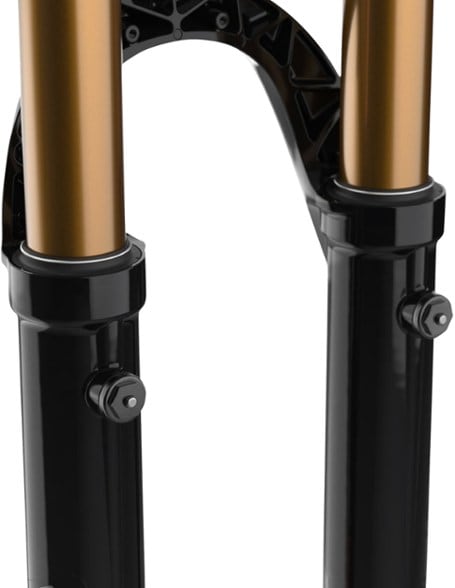

- Lower leg bypass channels allow for increased air volume, reducing the amount of additional unintended pressure ramping
- Lower leg bath oil circulates to the upper reaches of the legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its travel
- Lower leg bleeders allow for atmospheric pressure equalization, allowing for full travel while increasing responsiveness and sensitivity to small bumps
- Lower leg arch design shaves weight without compromising the stiffness or strength requirements that modern enduro and gravity-style riding demand
- FLOAT EVOL air spring optimizes small bump sensitivity by increasing negative air-spring volume
- FLOAT EVOL has a linear spring curve that delivers plushness off the top, extra mid-stroke support and more tunable bottom-out progression
- Genuine Kashima Coating on upper tubes, which reduces friction and increases wear life
Imported.
View all Fox Racing Shox Bike Suspension Forks| Best Use | Mountain Biking |
|---|---|
| Fork Spring Type | Air Spring |
| Fork Brake Type | Disc Brake |
| Fork Brake Mount | Post Mount |
| Max Rotor Diameter | 230 millimeters |
| Crown Race Diameter | 40 millimeters |
| Stanchion Diameter | 36 millimeters |
| Steerer Tube Diameter | 1.5 in. Tapered |
| Steerer Tube Length | 264 millimeters |
| Axle to Crown Length | 554 millimeters |
| Max Tire Width | 72 millimeters |
| Wheel Size | 27.5 inches |
| Fork Travel | 160 millimeters |
| Fork Offset | 44 millimeters |
| Front Axle | 15 x 110 mm Thru-Axle (Boost) |
| Weight | Unavailable |
| Material(s) | Kashima coated aluminum |
